Same model may have multiple batches, images only for reference.

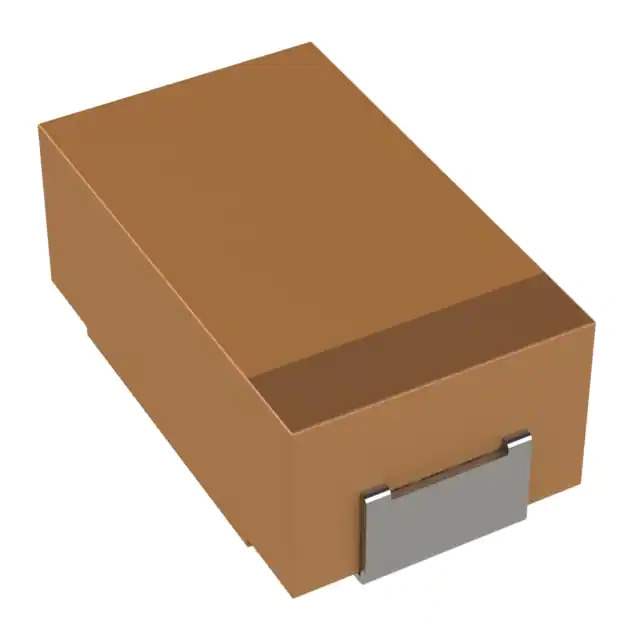

TPSD687M004R0045 Real Image
Same model may have multiple batches, images only for reference.

TPSD687M004R0045

Part No TPSD687M004R0045
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 680UF 20% 4V 2917 / 680 μF Molded Tantalum Capacitors 4 V 2917 (7343 Metric) 45mOhm
Datasheet
TPSD687M004R0045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr AVX Corp/Kyocera Corp
Series TPS
Package Tape & Reel
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 4 V
Type Molded
ESR (Equivalent Series Resistance) 45mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 901037-TPSD687M004R0045
Ultra Librarian 3D Model Ultra Librarian TPSD687M004R0045 CAD Model

Description

The TPSD687M004R0045 is a molded tantalum capacitor manufactured by AVX Corp/Kyocera Corp.

  • Series: TPS
  • Application: General-purpose
  • Capacitance: 680 μF
  • Tolerance: ±20%
  • Voltage: 4 V
  • ESR: 45mOhm
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.122" (3.10mm)
  • Mounting: Surface Mount
  • Packaging: Tape & reel
  • Operating Temperature Range: -55°C to 125°C
