Same model may have multiple batches, images only for reference.

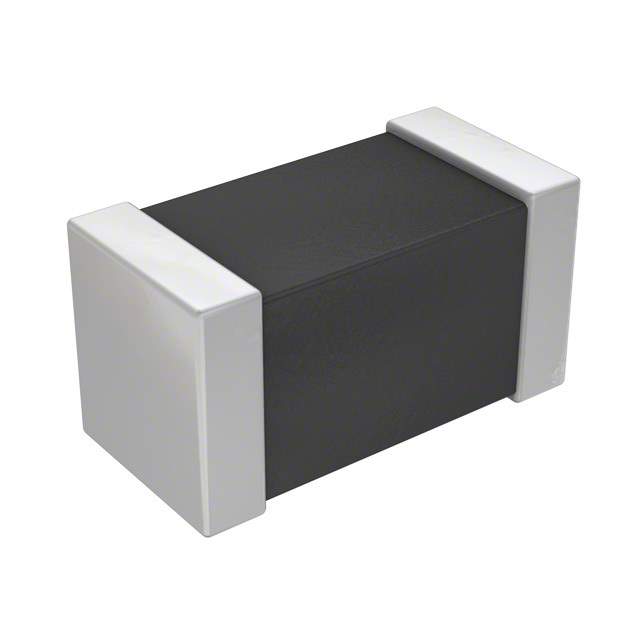

VC120626D580RP Real Image
Same model may have multiple batches, images only for reference.

VC120626D580RP

Part No VC120626D580RP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 34.5V 120A 1206 / 34.5 V 120 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
Datasheet
VC120626D580RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr KYOCERA AVX
Series TransGuard®
Package Tape & Reel
Maximum AC Volts 18 V
Maximum DC Volts 26 V
Varistor Voltage (Min) 31.05 V
Varistor Voltage (Typ) 34.5 V
Varistor Voltage (Max) 37.95 V
Current - Surge 120 A
Energy 0.4J
Number of Circuits 1
Capacitance @ Frequency 500 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 1206 (3216 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names 478-11147-1,478-11147-2,478-11147-6,VC120626D580RP-ND
Standard Package 4,000
Win Source Part Number 1134638-VC120626D580RP
Ultra Librarian 3D Model Ultra Librarian VC120626D580RP CAD Model

Description

The KYOCERA AVX TransGuard® series TVS - Varistor, MOVs is a high-quality product designed for surface mount, MLCV mounting.

  • Capacitance: 500 pF @ 1 kHz
  • Varistor Voltage: 31.05 V to 37.95 V
  • Current-Surge: 120 A
  • Energy: 0.4J
  • Package: 1206 (3216 Metric)
  • Operating Temperature: -55°C to 125°C (TA)
  • Standard Package: 4,000
  • Manufacturer: KYOCERA AVX
