Product Overview: LTC4421IUHE#TRPBF

The LTC4421IUHE#TRPBF is a robust power path controller manufactured by Analog Devices Inc., designed to provide seamless power switchover between two DC sources. This advanced electronic component is engineered to enhance system reliability in a wide array of applications, including but not limited to automotive systems, portable devices, and industrial equipment. The LTC4421IUHE#TRPBF ensures that electronic devices maintain uninterrupted operation even in the event of power source fluctuations or failures.

Key Features and Benefits

• Automatic Switchover: The device automatically switches between two power supplies, ensuring a continuous power supply to the load without the need for manual intervention.
• Wide Input Voltage Range: It operates over a broad input voltage range, accommodating various power sources and allowing for versatile deployment in different voltage environments.
• Low Loss: The LTC4421IUHE#TRPBF features low conduction losses, which translates to higher efficiency and reduced heat generation within the system.
• Priority Channel Selection: Users can prioritize one power source over another, providing control over the primary power supply for the system.
• Fast Switchover Time: The device boasts a rapid switchover time, minimizing the potential for system downtime during power source transitions.
• Adjustable Under-Voltage Lockout: The under-voltage lockout (UVLO) is adjustable, offering protection against undervoltage conditions and ensuring stable operation of the load.

Applications

The LTC4421IUHE#TRPBF is ideal for use in multiple applications where power supply redundancy is critical. This includes:

• Redundant Power Supply Systems
• Automotive Electronics
• Portable and Battery-Powered Devices
• Industrial Control Systems
• Uninterruptible Power Supplies (UPS)

Product Specifications

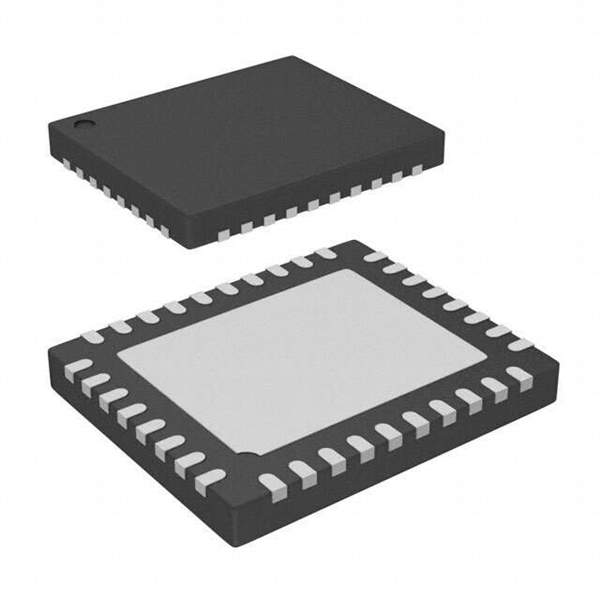

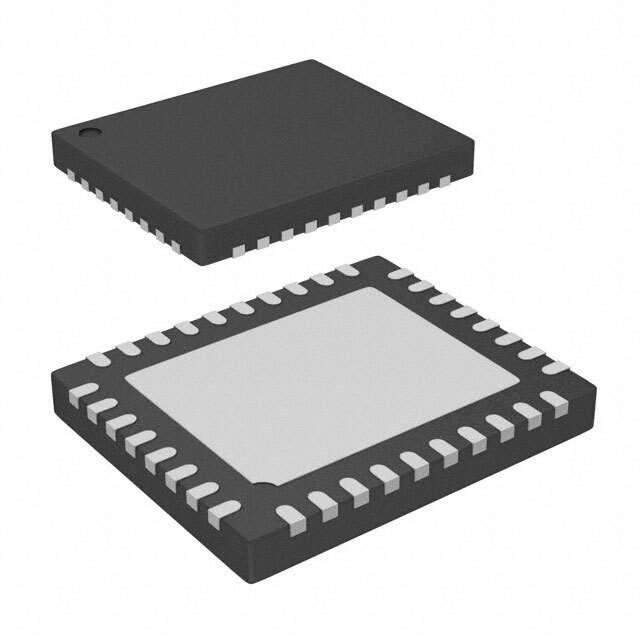

The LTC4421IUHE#TRPBF is packaged in a compact QFN-32 package, providing a space-saving solution for PCB designs. It operates over a temperature range of -40°C to 85°C, ensuring reliability in harsh environments. The product is also RoHS compliant, adhering to environmental standards and regulations.

With its combination of automatic switchover, wide input voltage range, and fast transition capabilities, the LTC4421IUHE#TRPBF from Analog Devices Inc. is an essential component for systems requiring reliable and efficient power management solutions.
