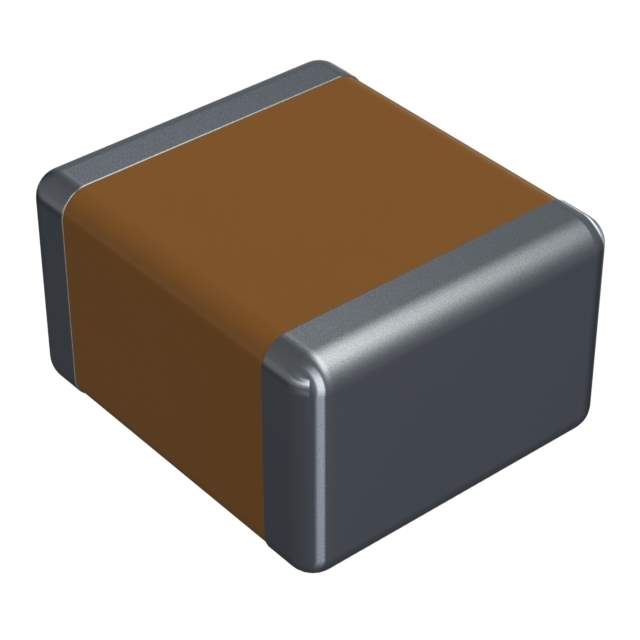

2220WC183KAT1A Real Image
Same model may have multiple batches, images only for reference.

2220WC183KAT1A

Part No 2220WC183KAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 0.018UF 2.5KV X7R 2220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel
Capacitance 0.018μF
Tolerance ±10%
Voltage - Rated 2500V (2.5kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Style SMT, MLCC
Manufacturer Package 2220 (5750 Metric)
Parts Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Maximum) 0.130" (3.30mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 713034-2220WC183KAT1A
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2220WC183KAT1A CAD Model

Description

The 713034-2220WC183KAT1A is a high voltage capacitor manufactured by AVX Corporation. It has a capacitance of 0.018μF and a tolerance of ±10%. The voltage rated is 2500V (2.5kV) and the temperature coefficient is X7R. The supply and demand status is limited.
