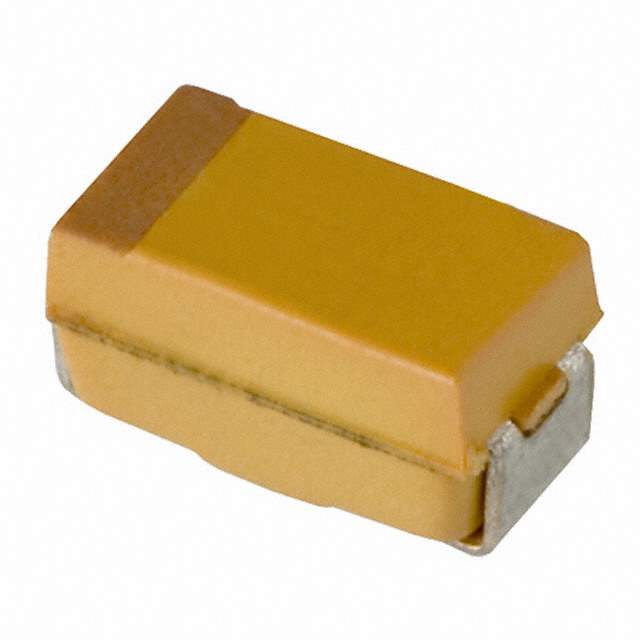

TPSA685K010R1800 Real Image
Same model may have multiple batches, images only for reference.

TPSA685K010R1800

Part No TPSA685K010R1800
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 10V 10% 1206
Datasheet
TPSA685K010R1800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 6.8μF
Tolerance ±10%
Voltage Rating 10V
Type Molded
ESR 1.8 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
Win Source Part Number 048115-TPSA685K010R1800
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPSA685K010R1800 CAD Model

Description

The AVX Corporation molded capacitor is a general-purpose capacitor that has a capacitance of 6.8μF and a voltage rating of 10V.

  • Type: Surface mount device (SMD)
  • Mounting: SMT technology
  • Tolerance: ±10%
  • ESR: 1.8 Ohm
  • Operating Temperature: -55°C to 125°C
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.071" (1.80mm) when seated
  • Popularity: Medium
  • Supply and Demand Status: Balanced
