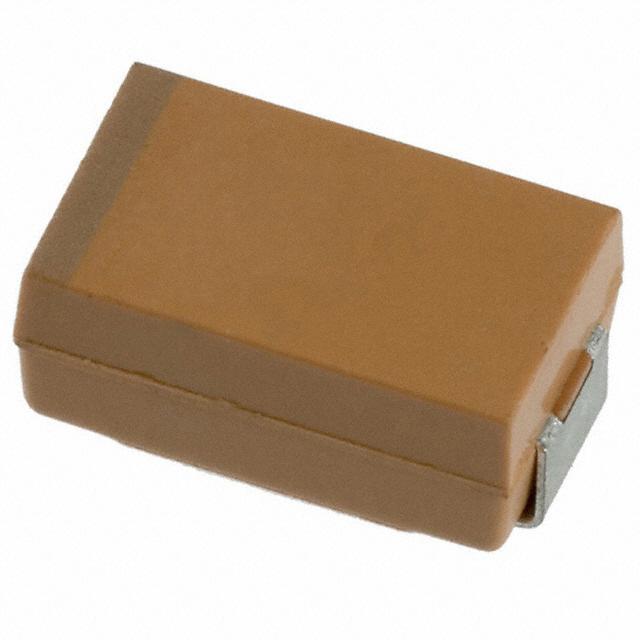

The TPSE226K035R0100 is a tantalum capacitor from AVX Corporation's TPS series. These capacitors are designed for surface mount applications, offering a robust and reliable solution for various electronic circuits. The TPSE series is known for its low ESR (Equivalent Series Resistance) and high volumetric efficiency, making it suitable for demanding applications where space and performance are critical.

Applications

• Power Management: Used in DC-DC converters and voltage regulators to provide stable power delivery.
• Filtering: Employed in filtering circuits to reduce noise and ripple in power and signal lines.
• Decoupling: Used for decoupling digital and analog circuits, ensuring stable operation by providing a local energy source.
• Storage: Utilized for energy storage in low-power applications.
• Industrial Equipment: Incorporated into various industrial electronic devices for reliable performance in harsh environments.

Features

• High Capacitance: Offers a capacitance value of 22µF.
• Low ESR: Exhibits a low Equivalent Series Resistance, reducing power dissipation and improving transient response.
• Surface Mount: Designed for surface mount technology (SMT) assembly, enabling efficient board manufacturing.
• Molded Case: Features a molded case for robust mechanical protection and environmental resistance.
• RoHS Compliant: Compliant with RoHS directives, ensuring environmental friendliness.

Benefits

• Stable Performance: Provides stable and reliable performance over a wide range of operating conditions.
• Efficient Power Delivery: Low ESR minimizes power loss, leading to more efficient power delivery.
• Space Saving: Compact size allows for high-density board designs.
• Long Lifespan: Offers a long operational lifespan, enhancing the reliability of the end product.
• Reduced Noise: Effective filtering and decoupling capabilities reduce noise and improve signal integrity.

Additional Details

The TPSE226K035R0100 has a capacitance of 22µF with a tolerance of ±10%. It has a voltage rating of 35V. The operating temperature range is typically -55°C to +125°C. The ESR is very low, enhancing its performance in demanding applications. The case size is standard for tantalum capacitors, facilitating easy integration into existing designs. The part is constructed with high-quality tantalum material, ensuring robust performance and longevity. The “R0100” suffix often indicates specific packaging or ESR characteristics, which should be verified with the manufacturer's datasheet for precise details.
