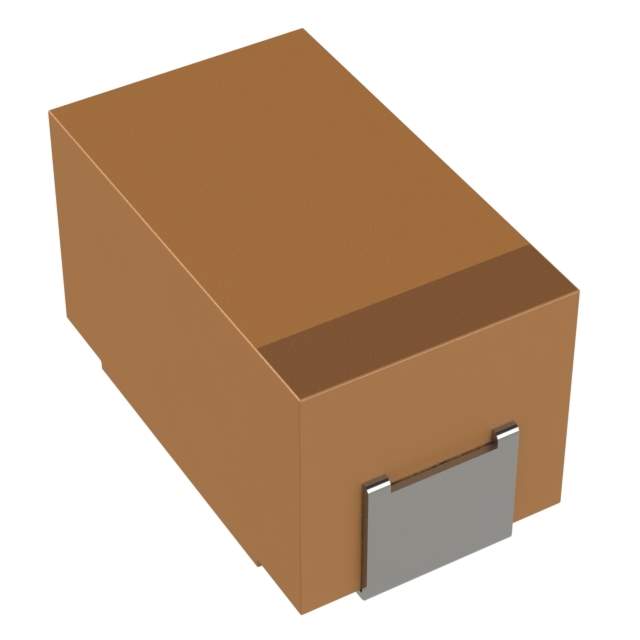

Same model may have multiple batches, images only for reference.

TPSE227M016R0150

Name: TPSE227M016R0150
Brand: AVX Corporation
SKU: 798315
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPSE227M016R0150
Manufacturer	AVX Corporation
Catalog	Tantalum Capacitors
Description	CAP TANT 220UF 16V 20% 2917 / Cap Tant Solid 220uF 16V E CASE 20% (7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.15 Ohm 125°C T/R
Datasheet	TPSE227M016R0150 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	AVX Corporation
Series	TPS
Packaging	Reel package
Capacitance	220μF
Tolerance	±20%
Voltage Rating DC	16V
Type	Molded
ESR (Equivalent Series Resistance)	150 mOhm
Operating Temperature Range	-55°C ~ 125°C
Mounting	SMD
Package	2917 (7343 Metric)
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum)	0.169" (4.30mm)
Manufacturer Size Code	E
Features	General
Win Source Part Number	798315-TPSE227M016R0150
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TPS
Introduction Date	May 05, 2009
ECCN	EAR99
Country of Origin	Czech Republic
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian TPSE227M016R0150 CAD Model

Alternative Products

Description

The AVX Corporation TPSE227M016R0150 capacitor is a molded type capacitor.

Capacitance: 220μF
Voltage Rating: 16V DC
Tolerance: ±20%
ESR (Equivalent Series Resistance): 150 mOhm
Manufacturer Size Code: E
Family Name: TPS
Package: Reel
Package Size: 2917 (7343 metric)
Operating Temperature Range: -55°C to 125°C
Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height when seated: 0.169" (4.30mm)
Halogen-Free Compliant: Yes
Estimated EOL Date: 2028
