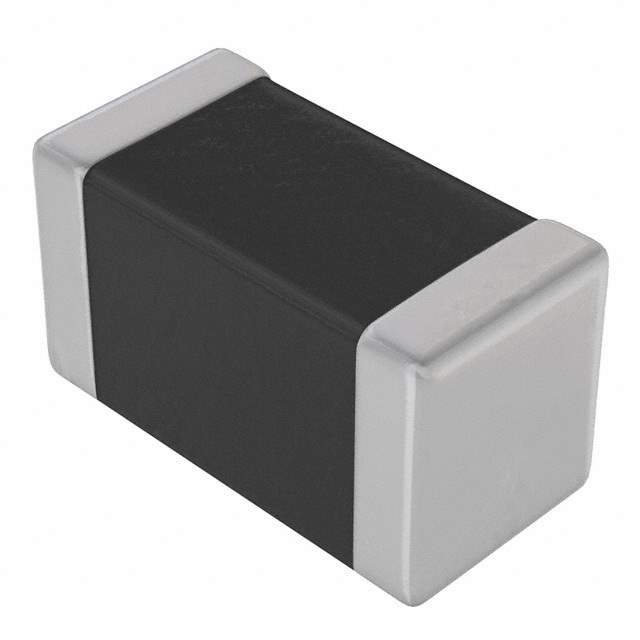

VC060326A580DP Real Image
Same model may have multiple batches, images only for reference.

VC060326A580DP

Part No VC060326A580DP
Manufacturer AVX Corporation
Catalog TVS - Varistors, MOVs
Description VARISTOR 34.5V 30A 0603
Datasheet
VC060326A580DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 31.05V
Varistor Voltage (Typ) 34.5V
Varistor Voltage (Max) 37.95V
Current - Surge 30A
Energy 0.10J
Number of Circuits 1
Maximum AC Volts 18VAC
Maximum DC Volts 26VDC
Capacitance @ Frequency 155pF @ 1kHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 0603 (1608 Metric)
Win Source Part Number 1116932-VC060326A580DP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VC060326A580DP CAD Model

Description

The AVX Corporation MLCV capacitor is a surface mount capacitor that has a capacitance of 155pF @ 1kHz.

  • Manufacturer: AVX Corporation
  • Capacitance: 155pF @ 1kHz
  • Varistor Voltage Range: 31.05V to 37.95V
  • Surge Current: 30A
  • Application: Circuit Protection
  • Maximum AC Volts: 18VAC
  • Maximum DC Volts: 26VDC
  • Energy: 0.10J
  • Category: Circuit Protection
  • Status: Active
  • Temperature Range: -55°C to 125°C (TA)
  • Supply and Demand Status: Balanced
