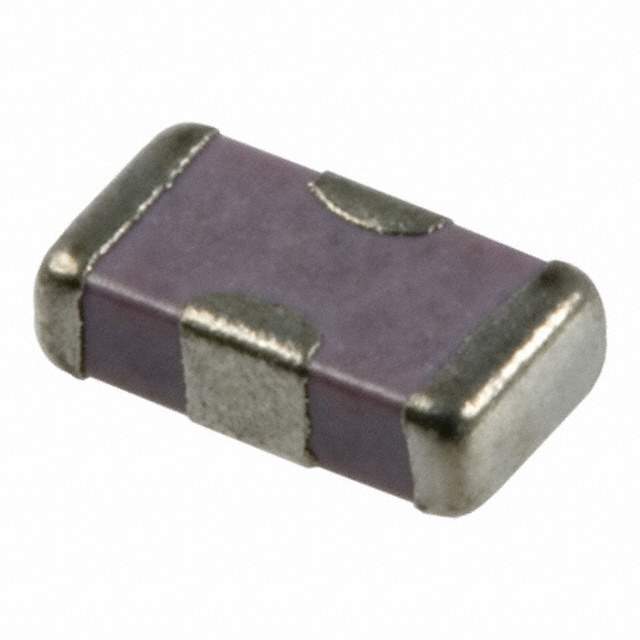

W3F15C2238AT1A Real Image
Same model may have multiple batches, images only for reference.

W3F15C2238AT1A

Part No W3F15C2238AT1A
Manufacturer AVX Corporation
Catalog Feed Through Capacitors
Description CAP FEEDTHRU 0.022UF 50V 1206 / Cap Feed Through 0.022uF 50VDC X7R -20% to 50% Flat 1206 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corporation
Series W3F
Packaging Reel package
Capacitance 0.022μF
Tolerance -20%, +50%
Voltage Rating DC 50V
Current 300mA
DC Resistance (DCR) (Maximum) 600 mOhm
Operating Temperature Range -55°C ~ 125°C
Temperature Coefficient X7R
Ratings AEC-Q200
Mounting SMD
Package 1206 (3216 Metric), 4 PC Pad
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Maximum) 0.050" (1.27mm)
Win Source Part Number 799277-W3F15C2238AT1A
Popularity Medium
Supply and Demand Status Limited
Family Name W3F
Introduction Date June 16, 1999
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian W3F15C2238AT1A CAD Model

Description

The AVX Corporation W3F15C2238AT1A is a filter capacitor designed for use in industrial environments.

  • Capacitance: 0.022μF
  • Voltage Rating DC: 50V
  • Maximum DC Resistance: 600mOhm
  • Maximum Current: 300mA
  • Package: 1206 (3216 Metric), 4 PC Pad
  • Mounting: Surface-mounting
  • Temperature Coefficient: X7R
  • Tolerance: -20%, +50%
  • Insertion Loss: -
  • AEC-Q200 Rated: Yes
  • Manufactured In: Malaysia
  • Estimated EOL Date: 2027
