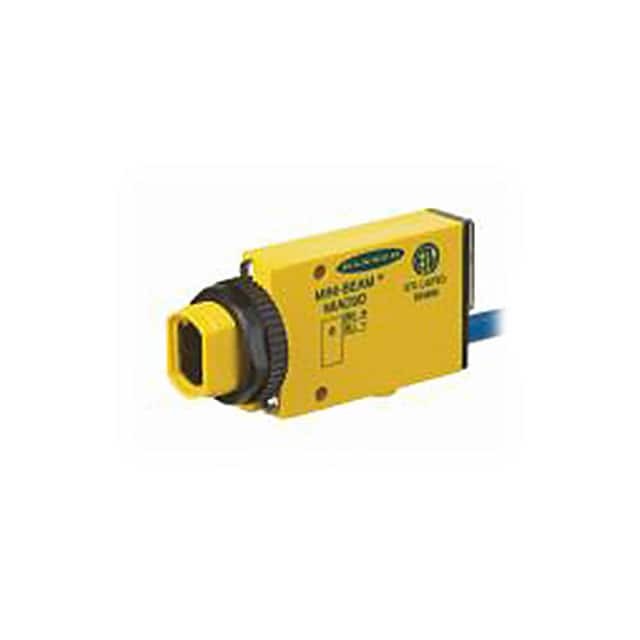

Same model may have multiple batches, images only for reference.
MIAD9FQ
Same model may have multiple batches, images only for reference.

MIAD9FQ

Part No MIAD9FQ
Manufacturer Banner Engineering Corporation
Catalog Optical Sensors - Photoelectric, Industrial
Description SEN PHOTO VARIED RANGE NAMUR
Datasheet
MIAD9FQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photoelectric, Industrial
Mfr Banner Engineering Corporation
Series MIAD9
Package Box
Product Status Active
Sensing Method Fiber Optic
Voltage - Supply 5V ~ 15V
Response Time 5ms
Output Configuration Analog
Light Source Infrared (880nm)
Connection Method Connector
Ingress Protection NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
Adjustment Type Adjustable, Potentiometer
Temperature Range - Operating -40°C ~ 70°C
Base Product Number MIAD9
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 916688-MIAD9FQ
Ultra Librarian 3D Model Ultra Librarian MIAD9FQ CAD Model

Description

The MIAD9FQ is an optical sensor from the MIAD9 series, designed for industrial applications.

  • Product Name: MIAD9FQ
  • Series: MIAD9
  • Sensor Type: Photoelectric sensor
  • Sensing Method: Fiber optic
  • Light Source: Infrared @ 880nm
  • Voltage Supply: 5V to 15V
  • Adjustment: Potentiometer
  • Ingress Protection: NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
  • Response Time: 5ms
  • Manufacturer: Banner Engineering Corporation
  • ECCN: EAR99 compliant
  • REACH: Unaffected
