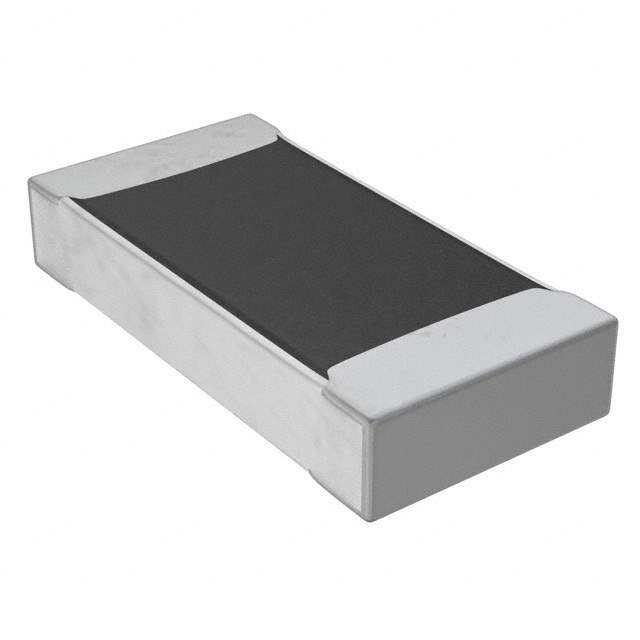

0685-1250-S1

Part No 0685-1250-S1
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 1.25A 63VAC/VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1.25A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Slow
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.14
Approvals CE, cURus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.225 Ohm
Win Source Part Number 197152-0685-1250-S1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0685-1250-S1 CAD Model

Description

Description

The 0685-1250-S1 offers exceptional functionality perfect for projects that require stability and precision. This electronic component is widely used in multiple industries due to its adaptability and reliability.

Applications

  • Power supply units
  • Measurement and testing devices
  • Electronic control units
  • Smart home technologies

Features and Benefits

  • Solid structure designed to withstand demanding conditions
  • High-performance rates with consistent output
  • Simplified integration into existing systems
  • Cost-effective solution with minimal maintenance

Additional Details

Ideal for projects needing precision and consistency, the 0685-1250-S1 is engineered to provide outstanding performance without compromising quality.
