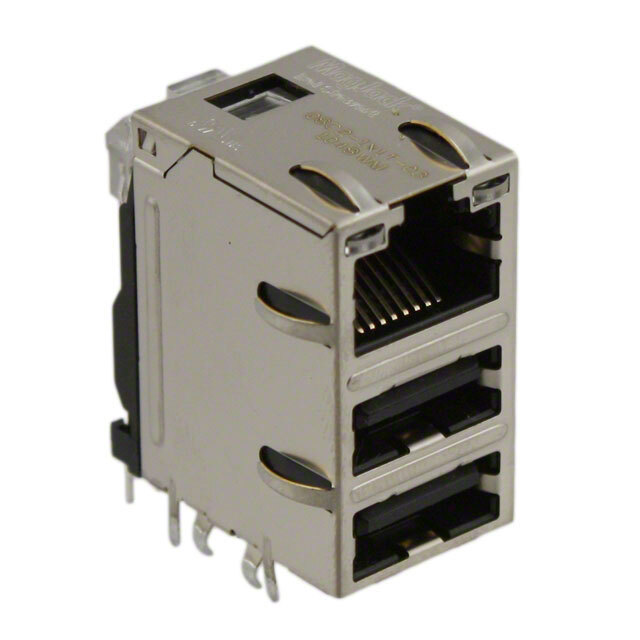

Same model may have multiple batches, images only for reference.
0816-1X1T-23-F Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0816-1X1T-23-F

Part No 0816-1X1T-23-F
Manufacturer Bel Fuse Inc.
Catalog Modular Connector Jacks With Magnetics
Description CONN JACK 1PORT PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.536" (13.61mm)
LED Color Does Not Contain LED
Number of Cores per Jack 12
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1631171-0816-1X1T-23-F
Ultra Librarian 3D Model Ultra Librarian 0816-1X1T-23-F CAD Model
