Same model may have multiple batches, images only for reference.

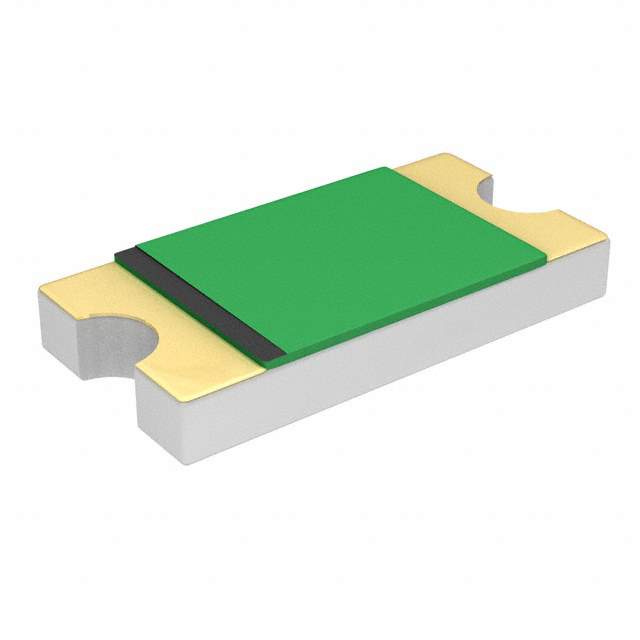

0ZCJ0020FF2E Real Image
Same model may have multiple batches, images only for reference.

0ZCJ0020FF2E

Part No 0ZCJ0020FF2E
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 200MA 1206  /  Polymeric PTC Resettable Fuse 30V 200 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
0ZCJ0020FF2E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCJ
Package Tape & Reel
Type Polymeric
Voltage - Max 30V
Current - Max 10 A
Current - Hold (Ih) (Max) 200 mA
Current - Trip (It) 400 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 600 mOhms
Resistance - Post Trip (R1) (Max) 2.5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.030" (0.75mm)
Approval Agency AEC-Q200, cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1797-1,507-1797-2,507-1797-6
Standard Package 3,000
Win Source Part Number 985237-0ZCJ0020FF2E
Ultra Librarian 3D Model Ultra Librarian 0ZCJ0020FF2E CAD Model

Description

The 0ZCJ series PTC resettable fuse from Bel Fuse Inc. is a polymeric type fuse that comes in a tape and reel package.

  • Maximum Voltage: 30V
  • Maximum Current: 10A
  • Current Hold (Ih): 200mA
  • Current Trip (It): 400mA
  • Time to Trip: 100ms
  • Package/Case: 1206 (3216 metric)
  • Shape: concave
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.128" L x 0.065" W (3.25mm x 1.65mm)
  • Initial Resistance (Ri): 600 mOhms
  • AEC-Q200 rated: yes
