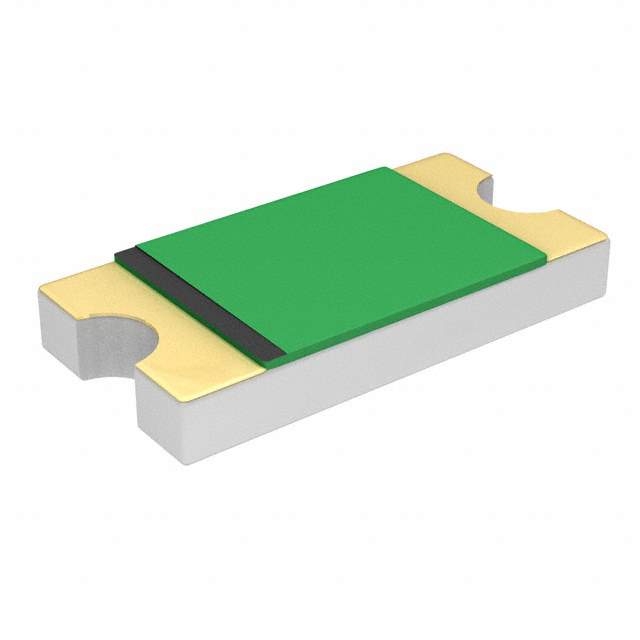

0ZCJ0025AF2E Real Image
Same model may have multiple batches, images only for reference.

0ZCJ0025AF2E

Part No 0ZCJ0025AF2E
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 250MA 1206  /  Polymeric PTC Resettable Fuse 24V 250 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
0ZCJ0025AF2E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCJ
Package Tape & Reel
Type Polymeric
Voltage - Max 24V
Current - Max 40 A
Current - Hold (Ih) (Max) 250 mA
Current - Trip (It) 500 mA
Time to Trip 80 ms
Resistance - Initial (Ri) (Min) 550 mOhms
Resistance - Post Trip (R1) (Max) 2.3 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.030" (0.75mm)
Approval Agency AEC-Q200, cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1799-6,507-1799-1,507-1799-2
Standard Package 3,000
Win Source Part Number 1131388-0ZCJ0025AF2E
Ultra Librarian 3D Model Ultra Librarian 0ZCJ0025AF2E CAD Model

Description

The Bel Fuse Inc. 1131388-0ZCJ0025AF2E PTC resettable fuse is a polymeric type surface mount device that is used for circuit protection in electronic devices.

  • Current Rating: 40A
  • Voltage Rating: 24V
  • Time to Trip: 80ms
  • Current Hold: 250mA
  • Mounting: 1206 (3216 Metric), Concave
  • Dimension: 0.128" L x 0.065" W (3.25mm x 1.65mm)
  • Approval Agencies: AEC-Q200, cURus, TUV
  • Standard Package: 3,000
  • RoHS Compliant: Yes
