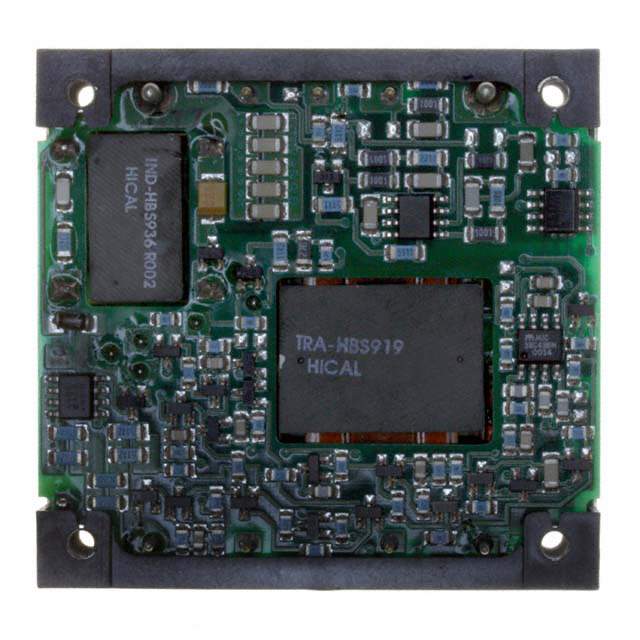

Same model may have multiple batches, images only for reference.

HBS100ZH-ANT

Name: HBS100ZH-ANT
Brand: Bel Power Solutions
SKU: 1012311
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HBS100ZH-ANT
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 100W / Isolated Module DC DC Converter 1 Output 12V 8.3A 34V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Power Solutions
Series	HBS (100W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	34V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	8.3A
Power (Watts)	100 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	9-DIP Module, 1/2 Brick
Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features	Enable, Active Low
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	179-2155
Standard Package	25
Win Source Part Number	1012311-HBS100ZH-ANT
Ultra Librarian 3D Model	Ultra Librarian HBS100ZH-ANT CAD Model

Alternative Products

Description

The HBS100ZH-ANT is a DC-DC converter from Bel Power Solutions, from the HBS (100W) series.

Product: HBS100ZH-ANT
Series: HBS (100W)
Type: Isolated Module
Package: Bulk
Protection: Remote On/Off, OCP, OTP, OVP, SCP
Application: ITE (Commercial)
Power Output: 100 W
Control Features: Enable, Active Low
Voltage Isolation: 1.5 kV
Outputs: 1
Maximum Current Output: 8.3A
Voltage Input: 34V to 75V
Voltage Output: 12V
Efficiency: 86%
Mounting Type: Through-Hole
Status: Obsolete
RoHS: Non-compliant
