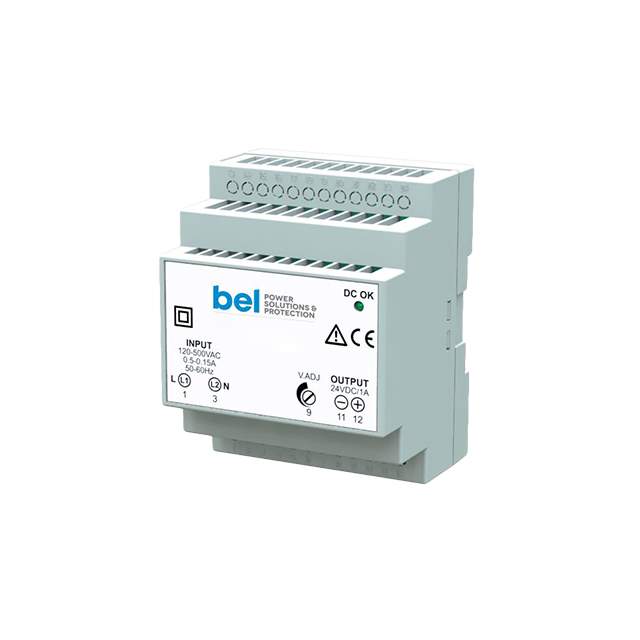

LDW25-24S Real Image
Same model may have multiple batches, images only for reference.

LDW25-24S

Part No LDW25-24S
Manufacturer Bel Power Solutions
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC CONVERTER 24V 25W /
Datasheet
LDW25-24S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr Bel Power Solutions
Series LDW25 (25W)
Package Box
Input Type AC
Number of Outputs 1
AC Voltage - Input 90 ~ 500 VAC
Voltage - Output 1 24V
Current - Output (Max) 1A
Power (Watts) 25W
Voltage - Isolation 4.2 kV
Applications ITE (Commercial)
Efficiency 83%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Adjustable Output, IP20, Universal Input
Dimension 2.42" L x 2.83" W x 3.54" H (61.5mm x 72.0mm x 90.0mm)
Approval Agency CE, cULus
Minimum Load Required No
Base Product Number LDW25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6001
Other Names 2266-LDW25-24S,179-2971,LDW25-24
Standard Package 20
Win Source Part Number 1230061-LDW25-24S
Ultra Librarian 3D Model Ultra Librarian LDW25-24S CAD Model

Description

The Bel Power Solutions LDW25-24S is a 25W power supply that belongs to the LDW25 series of industrial DIN rail power supplies.

  • Power: 25W
  • Series: LDW25
  • Type: Industrial DIN Rail
  • Features: Adjustable Output, IP20, Universal Input
  • Application: ITE (Commercial)
  • Standard Package: 20
  • Number of Outputs: 1
  • Maximum Current Output: 1A
  • Voltage Output: 24V
  • Efficiency: 83%
  • Minimum Load: No
  • Operating Temperature: -40°C to 70°C (with derating)
  • Dimensions: 2.42" L x 2.83" W x 3.54" H (61.5mm x 72.0mm x 90.0mm)
