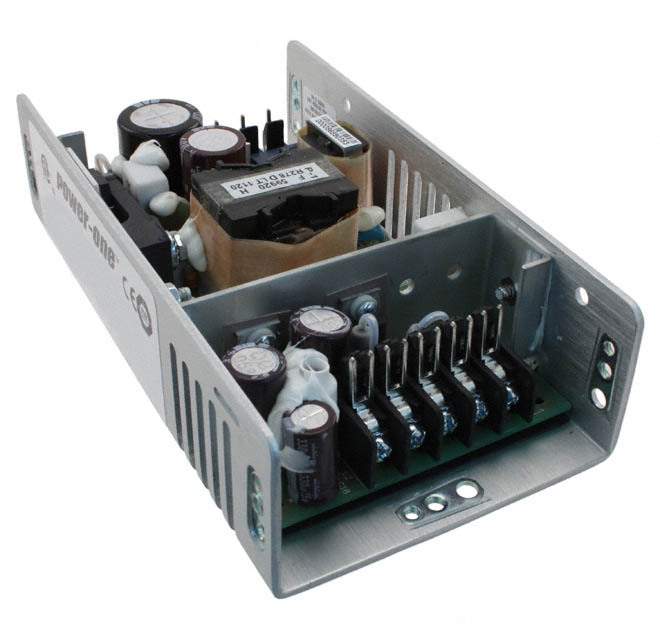

MAP55-4000G Real Image
Same model may have multiple batches, images only for reference.

MAP55-4000G

Part No MAP55-4000G
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description AC/DC CNVRTR 5V 12V -5V -12V 55W / Open Frame AC DC Converters 4 Output 5V 12V -5V -12V 90 ~ 264 VAC Input
Datasheet
MAP55-4000G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Bel Power Solutions
Series MAP55 (55W)
Package Bulk
Type Open Frame
Number of Outputs 4
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 5V
Voltage - Output 2 12V
Voltage - Output 3 -5V
Voltage - Output 4 -12V
Current - Output 1 6 A
Current - Output 2 2.5 A
Current - Output 3 500 mA
Current - Output 4 500 mA
Power (Watts) 55W
Applications ITE (Commercial)
Voltage - Isolation 2.6 kV
Efficiency 73%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Dimension 6.00" L x 3.27" W x 1.60" H (152.4mm x 83.1mm x 40.6mm)
Approval Agency CE
Minimum Load Required Yes
Base Product Number MAP55
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.7007
Other Names MAP55-4000G-ND,179-2984
Standard Package 10
Win Source Part Number 1027268-MAP55-4000G
Ultra Librarian 3D Model Ultra Librarian MAP55-4000G CAD Model

Description

The MAP55-4000G is an open frame AC DC converter from Bel Power Solutions. It is designed for power supplies - external/internal (off-board)>AC DC converters and has a power output of 55W.

  • Type: Open Frame AC DC Converter
  • Power Output: 55W
  • Features: Adjustable output, universal input
  • Outputs: 4
  • Voltage Ratings: 5V, 12V, -5V, -12V
  • Package Type: Bulk
  • Mounting: Chassis Mount
  • Temperature Range: 0°C to 70°C (with derating)
  • Application: ITE (Commercial)
