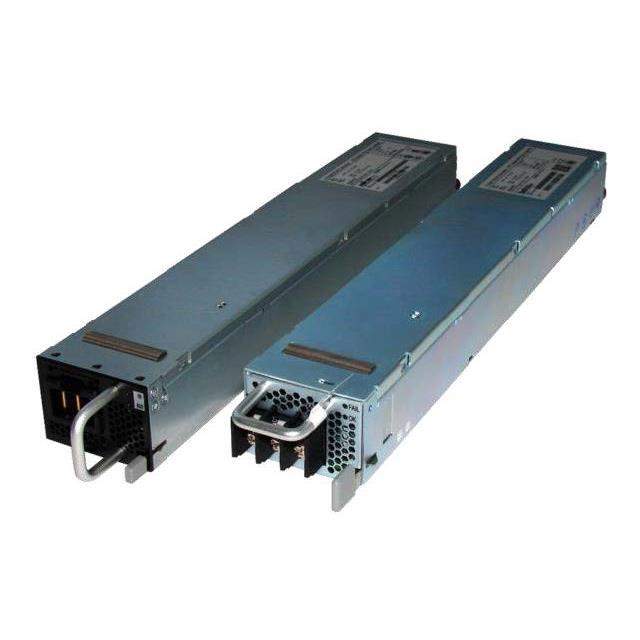

Same model may have multiple batches, images only for reference.

PFE1100-12-054ND

Name: PFE1100-12-054ND
Brand: Bel Power Solutions
SKU: 1059024
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PFE1100-12-054ND
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 12V 1100W / Front End DC DC Converter 1 Output 12V 90A 72V Input
Datasheet	PFE1100-12-054ND Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr	Bel Power Solutions
Series	PFE1100 (1100W)
Package	Bulk
Type	Front End
Voltage - Input (Min)	40V
Voltage - Input (Max)	72V
Number of Outputs	1
Voltage - Output 1	12V
Current - Output (Max)	90A
Power (Watts)	1100W
Applications	ITE (Commercial)
Efficiency	92.9%
Temperature Range - Operating	0°C ~ 45°C
Mounting Type	Rack Mount
Dimension	12.66" L x 2.15" W x 1.57" H (321.5mm x 54.5mm x 40.0mm)
Approval Agency	CB, CCC, cCSAus, CE, CQC, KC, NEMKO
Base Product Number	PFE1100
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.6018
Other Names	2266-PFE1100-12-054ND
Standard Package	12
Win Source Part Number	1059024-PFE1100-12-054ND
Ultra Librarian 3D Model	Ultra Librarian PFE1100-12-054ND CAD Model

Alternative Products

Description

The PFE1100-12-054ND is a high-quality DC-DC converter designed for use in ITE (Commercial) applications.

Application: ITE (Commercial)
Type: Front-end
Output: Single output
Maximum Output Current: 90A
Input Voltage Range: 40V to 72V
Output Voltage: 12V
Maximum Power Output: 1100W
Efficiency: 92.9%
Operating Temperature Range: 0°C to 45°C
Mounting: Rack mountable
Dimension: 12.66" L x 2.15" W x 1.57" H (321.5mm x 54.5mm x 40.0mm)
Package: Bulk
Popularity: High
