Same model may have multiple batches, images only for reference.

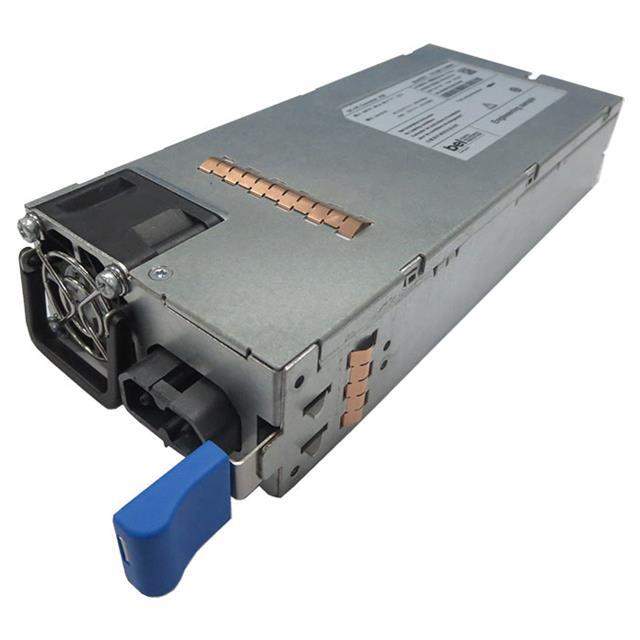

TET2200-12-086ND Real Image
Same model may have multiple batches, images only for reference.

TET2200-12-086ND

Part No TET2200-12-086ND
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 12V 2200W  /  Front End DC DC Converter 1 Output 12V 183A -72V Input
Datasheet
TET2200-12-086ND Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr Bel Power Solutions
Series TET2200 (2200W)
Package Box
Type Front End
Voltage - Input (Min) -40V
Voltage - Input (Max) -72V
Number of Outputs 1
Voltage - Output 1 12V
Current - Output (Max) 183A
Power (Watts) 2200W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Efficiency 94%
Temperature Range - Operating 0°C ~ 55°C
Mounting Type Rack Mount
Dimension 7.74" L x 3.40" W x 1.57" H (196.5mm x 86.3mm x 40.0mm)
Approval Agency CE
Base Product Number TET2200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names -1444-TET2200-12-086ND,179-TET2200-12-086ND
Standard Package 6
Win Source Part Number 1058018-TET2200-12-086ND
Ultra Librarian 3D Model Ultra Librarian TET2200-12-086ND CAD Model

Description

The Bel Power Solutions TET2200-12-086ND is a front-end type power supply that comes with a box packaging. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Type: Front-End
  • Packaging: Box
  • Series: 2200W
  • Application: ITE (Commercial)
  • Standard Package: 6
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Voltage Output 1: 12V
  • Current Output: 183A
  • Voltage Input Range: -40V to -72V
  • Efficiency: 94%
  • Mounting Type: Rack Mountable
  • Operating Temperature: 0°C to 55°C
  • Dimensions: 7.74" L x 3.40" W x 1.57" H (196.5mm x 86.3mm x 40.0mm)
