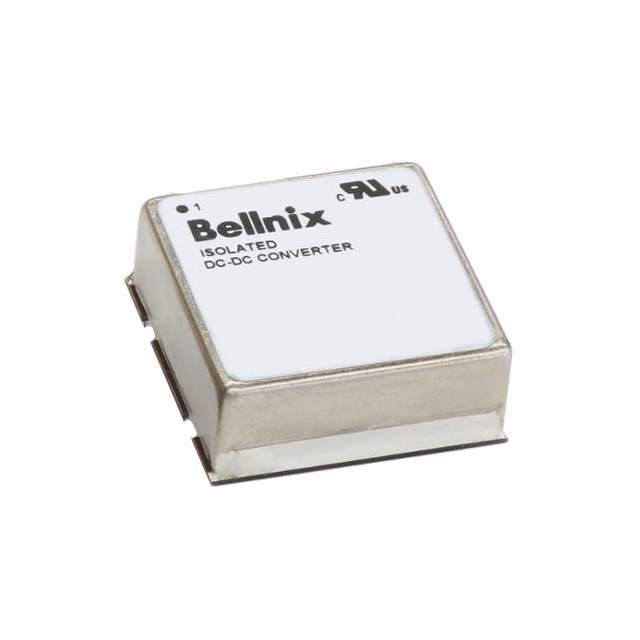

BTJ48-12S250D Real Image
Same model may have multiple batches, images only for reference.

BTJ48-12S250D

Part No BTJ48-12S250D
Manufacturer Bellnix Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 30W / Isolated Module DC DC Converter 1 Output 12V 2.5A 18V - 76V Input
Datasheet
BTJ48-12S250D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bellnix Co., Ltd.
Series BTJ (30W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Current - Output (Max) 2.5A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number BTJ48
Standard Package 24
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338517-BTJ48-12S250D
Ultra Librarian 3D Model Ultra Librarian BTJ48-12S250D CAD Model

Description

The BTJ48-12S250D from Bellnix Co., Ltd. is a DC DC converter that is ideal for use in ITE (Commercial) applications.

  • Series: BTJ (30W)
  • Application: ITE (Commercial)
  • Type: Isolated Module
  • Features: Adjustable Output, Remote On/Off
  • Package: 6-DIP Module
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Power Output: 30W
  • Voltage Isolation: 1.5 kV
  • Efficiency: 90%
  • Current Output: 2.5A
  • Input Voltage: 18V to 76V
  • Voltage Output: 12V
  • Temperature Range: -40°C to 85°C (with derating)
  • ECCN: EAR99 compliant
