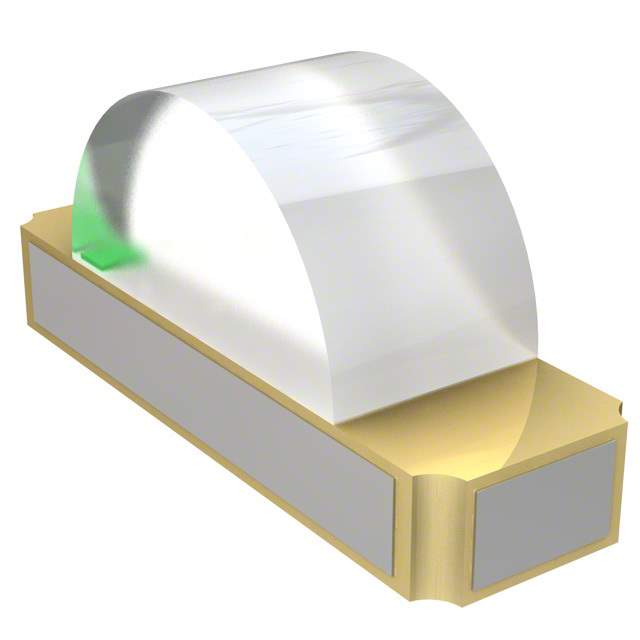

Same model may have multiple batches, images only for reference.

SM1204UAC

Name: SM1204UAC
Brand: Bivar Inc.
SKU: 1242350
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SM1204UAC
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED AMBER CLEAR 1204 R/A SMD / Amber 605nm LED Indication - Discrete 2.1V 1204 (3210 Metric)
Datasheet	SM1204UAC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel
Color	Amber
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	90mcd
Lens Style	Rectangle with Domed Top
Lens Size	2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ)	2.1V
Current - Test	20mA
Viewing Angle	110°
Mounting Type	Surface Mount, Right Angle
Wavelength - Dominant	605nm
Wavelength - Peak	610nm
Package / Case	1204 (3210 Metric)
Supplier Device Package	1204
Dimension	3.20mm L x 1.00mm W
Height (Max)	1.00mm
Base Product Number	SM1204
Other Names	492-1237-1,492-1237-2,492-1237-6
Standard Package	3,000
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242350-SM1204UAC
Ultra Librarian 3D Model	Ultra Librarian SM1204UAC CAD Model

Alternative Products

Description

The SM1204UAC is an amber LED indication discrete component from Bivar Inc. It has a viewing angle of 110 degrees and a millicandela rating of 90mcd.

Voltage-Forward (Vf): 2.1V
Wavelength-Dominant: 605nm
Package/Case: 1204 (3210 Metric)
Dimension: 3.20mm L x 1.00mm W
Lens Style: Rectangle with a domed top
Lens Size: 2.00mm x 1.00mm
Mounting Type: Surface mount and right angle
RoHS: Compliant
MSL Level: 4 (72 Hours)
