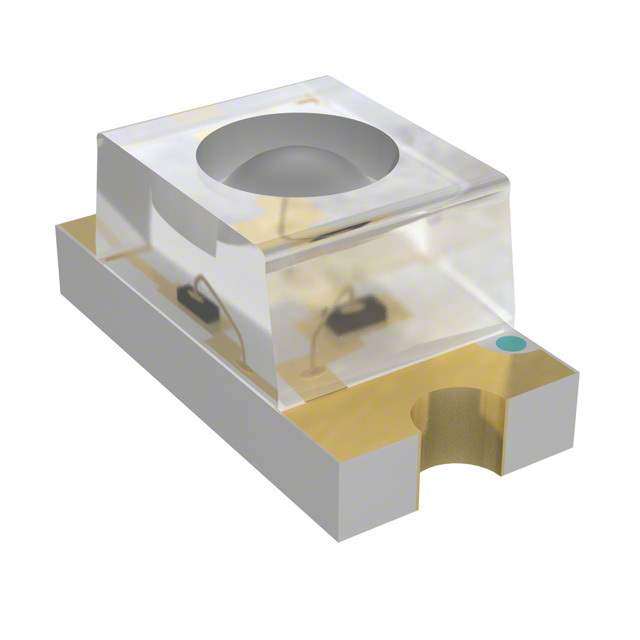

SM1206UOC-IL Real Image
Same model may have multiple batches, images only for reference.

SM1206UOC-IL

Part No SM1206UOC-IL
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR 1206 SMD / Orange 625nm LED Indication - Discrete 2.1V 1206 (3216 Metric)
Datasheet
SM1206UOC-IL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 330mcd
Lens Style Round with Flat Top
Lens Size 1.10mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 30°
Mounting SMD (SMT)
Wavelength - Dominant 625nm
Wavelength - Peak 630nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.40mm
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242236-SM1206UOC-IL
Ultra Librarian 3D Model Ultra Librarian SM1206UOC-IL CAD Model

Description

The Bivar Inc. 1242236-SM1206UOC-IL is a surface mount orange LED from that comes in a 1206 package.

  • Lens: Clear, colorless
  • Lens Style: Round flat top
  • Viewing Angle: 30 degrees
  • Millicandela Rating: 330mcd
  • Forward Voltage: 2.1V
  • Wavelength: 625nm to 630nm
  • Packaging: Tape and reel
  • Standard Package: 3,000 units
  • Component Status: Obsolete
