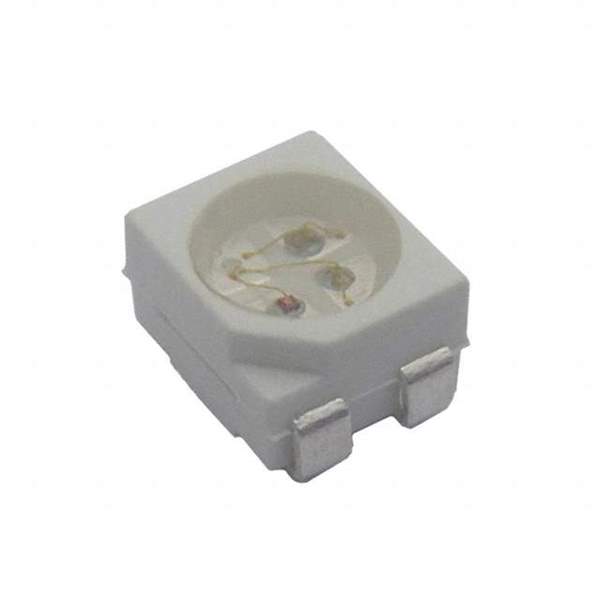

Same model may have multiple batches, images only for reference.

SMP4-BC-RB

Name: SMP4-BC-RB
Brand: Bivar Inc.
SKU: 1242293
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMP4-BC-RB
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED BLUE/RED CLEAR 4PLCC SMD / Blue, Red 466nm Blue, 640nm Red LED Indication - Discrete 3.3V Blue, 1.85V Red 4-PLCC
Datasheet	SMP4-BC-RB Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel
Product Status	Obsolete
Color	Blue, Red
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	50mcd Blue, 36mcd Red
Lens Style	Round with Flat Top
Lens Size	2.40mm Dia
Voltage - Forward (Vf) (Typ)	3.3V Blue, 1.85V Red
Current - Test	20mA Blue, 20mA Red
Viewing Angle	120°
Mounting	SMD (SMT)
Wavelength - Dominant	466nm Blue, 640nm Red
Package / Case	4-PLCC
Supplier Device Package	4-PLCC
Dimension	3.20mm L x 2.80mm W
Height (Max)	1.85mm
Other Names	492-1284-2,492-1284-1,492-1284-6,SMP4BCRB
Standard Package	2,000
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242293-SMP4-BC-RB
Ultra Librarian 3D Model	Ultra Librarian SMP4-BC-RB CAD Model

Alternative Products

Description

The 4-PLCC package contains two LED Indications, one blue and one red.

Package: Tape and Reel
Mounting: SMD (SMT)
Configuration: Independent
Viewing Angle: 120°
Lens Color: Colorless with a clear transparency
Millicandela Rating: 50mcd for blue and 36mcd for red
Voltage Forward (Vf): 3.3V for blue and 1.85V for red
Current Test: 20mA for both colors
Wavelength Dominant: 466nm for blue and 640nm for red
Height (max): 1.85mm
Dimension: 3.20mm L x 2.80mm W
Lens Style: Round with flat top
Lens Size: 2.40mm Dia
ECCN: EAR99
MSL Level: 4 (72 Hours)
HTSUS: 8541.41.0000
Product Status: Obsolete
