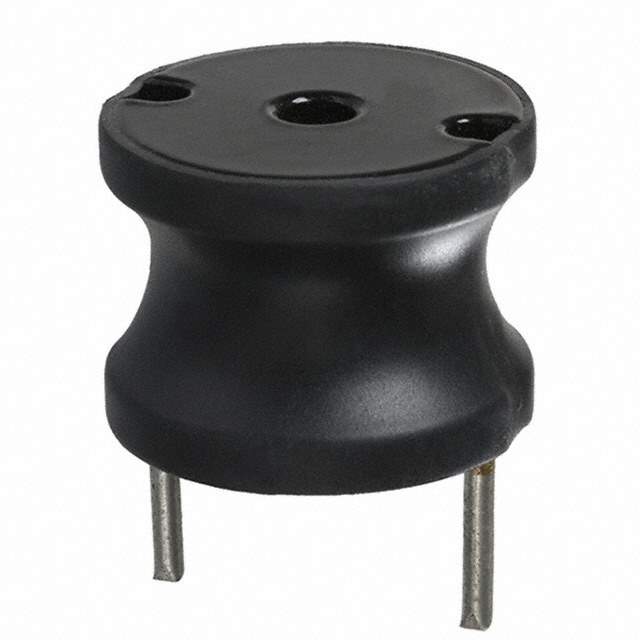

Same model may have multiple batches, images only for reference.

1130-220K-RC

Name: 1130-220K-RC
Brand: Bourns Inc.
SKU: 1017345
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1130-220K-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 22UH 13.5A 11 MOHM TH / 22 µH Unshielded Drum Core, Wirewound Inductor 13.5 A 11mOhm Max Radial
Datasheet	1130-220K-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	1130
Package	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±10%
Current Rating (Amps)	13.5 A
Shielding	Unshielded
DC Resistance (DCR)	11mOhm Max
Temperature Range - Operating	-55°C ~ 105°C
Inductance Frequency - Test	1 kHz
Mounting Type	Through Hole
Package / Case	Radial
Dimension	1.100" Dia (27.94mm)
Height - Seated (Max)	0.840" (21.34mm)
Base Product Number	1130
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	1130220KRC
Standard Package	106
Win Source Part Number	1017345-1130-220K-RC
Ultra Librarian 3D Model	Ultra Librarian 1130-220K-RC CAD Model

Alternative Products

Description

The Bourns Inc. 1130 series is a fixed inductor that is designed to provide high performance in a compact package.

Manufacturer: Bourns Inc.
Series: 1130
Inductance: 22µH
DC Resistance (Max): 11mOhm
Mounting: Through-hole
Package: Radial
Tolerance: ±10%
Packaging: Bulk
Current Rating: 13.5A
Temperature Range: -55°C to 105°C
