Same model may have multiple batches, images only for reference.

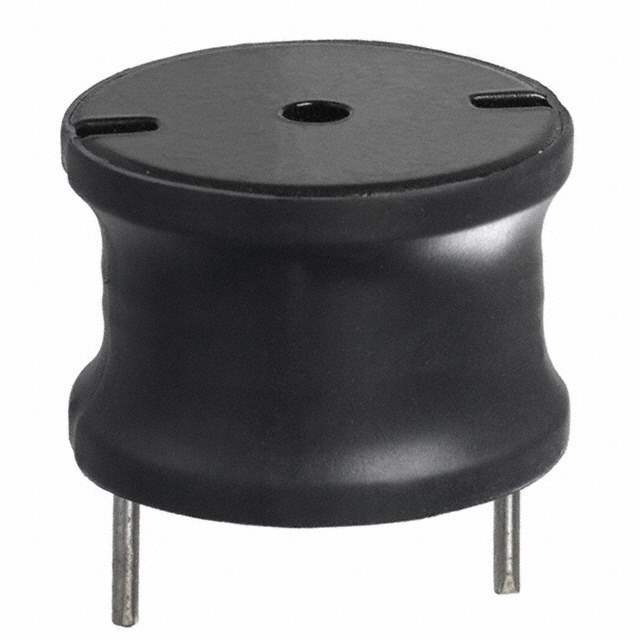

1140-271K-RC Bourns Inc.
Same model may have multiple batches, images only for reference.

1140-271K-RC

Part No 1140-271K-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 270UH 7A 56 MOHM TH
Datasheet
1140-271K-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310610-1140-271K-RC
Manufacturer Bourns Inc.
Category Inductors, Coils, Chokes > Fixed Inductors
Packaging Bulk
Part Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 270 µH
Tolerance ±10%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 12.4A
Shielding Unshielded
DC Resistance (DCR) 56mOhm Max
Ultra Librarian 3D Model Ultra Librarian 1140-271K-RC CAD Model

Description

Special Features • Very high current capacity • Low DCR • Epoxy coated ferrite bobbin core • VW-1 rated shrink tubing to cover winding • Self-leaded • Fixed lead spacing • Center hole for mechanical mounting • Dielectric withstanding voltage: 2500 Vrms terminal to shrink tube cover; 1000 Vrms terminal to core • Operating temperature -55 to +105 °C
