Same model may have multiple batches, images only for reference.

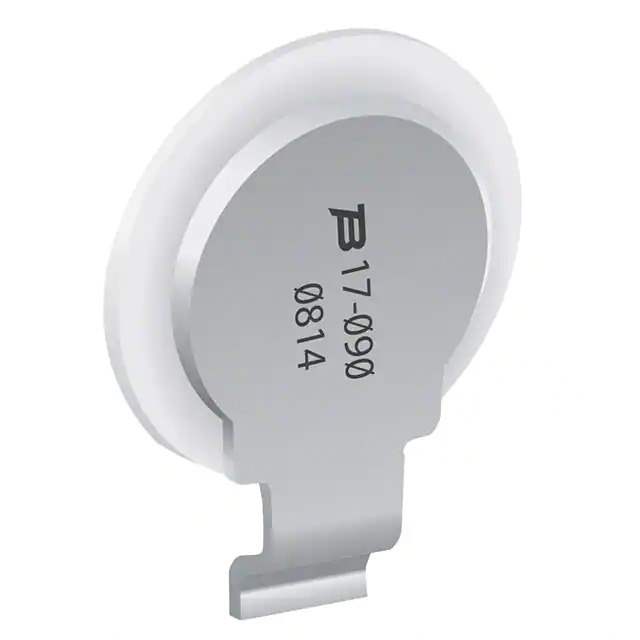

2017-09-SMH-RPLF Real Image
Same model may have multiple batches, images only for reference.

2017-09-SMH-RPLF

Part No 2017-09-SMH-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 10KA 2 POLE SMD HORIZ / Gas Discharge Tube 90 V 10000A (10kA) ±20% 2 Pole Surface Mount Horizontal
Datasheet
2017-09-SMH-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series 2017
Package Tape & Reel
Product Status Active
Voltage - DC Spark Over (Nom) 90 V
Impulse Discharge Current (8/20µs) 10000A (10kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting Type Surface Mount Horizontal
Package / Case Disc 8.00mm Tabbed SMD
Base Product Number 2017
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 854496-2017-09-SMH-RPLF
Ultra Librarian 3D Model Ultra Librarian 2017-09-SMH-RPLF CAD Model

Description

The 854496-2017-09-SMH-RPLF is a gas discharge tube arrester (GDT) from Bourns Inc..

  • Series: 2017
  • Package: Tape & Reel
  • Standard Package: 2,000 pcs
  • Voltage - DC Spark Over: 90 V
  • Tolerance: ±20%
  • Number of Poles: 2
  • Fail Short: No
  • Impulse Discharge Current: 10000A (10kA)
  • Discharge: 8/20µs
  • Mounting Type: Surface Mount Horizontal
  • Package/Case: Disc 8.00mm Tabbed SMD
  • ECCN: EAR99
  • REACH: Not affected
  • MSL Level: Not applicable
  • California Prop 65: Not applicable
