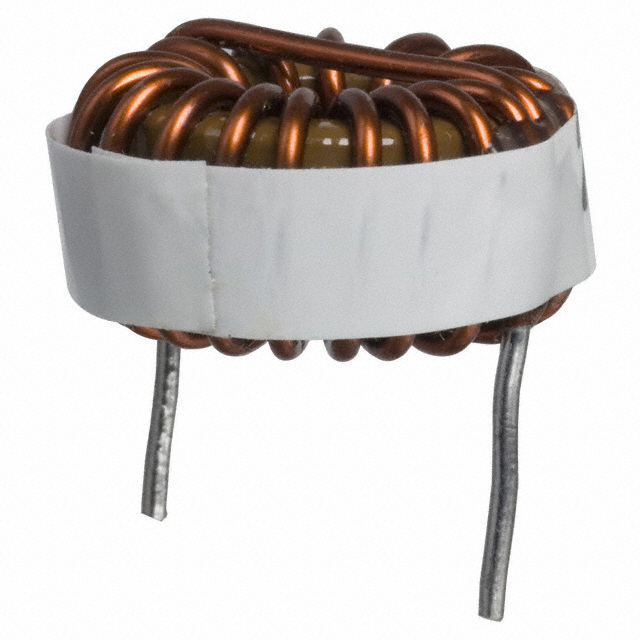

Same model may have multiple batches, images only for reference.
2300HT-220-H-RC Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2300HT-220-H-RC

Part No 2300HT-220-H-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 19A 8 MOHM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesFixed Inductors
Mfr Bourns Inc.
Series 2300HT
Packaging Bulk
Part Status Active
Type Toroidal
Material - Core Iron Powder
Inductance 22 μH
Tolerance ±15%
Current Rating (Amps) 19 A
Shielding Shielded
DC Resistance (DCR) 8mOhm Max
Operating Temperature -55°C ~ 200°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Size / Dimension 1.280" Dia (32.51mm)
Height - Seated (Max) 0.650" (16.51mm)
Base Product Number 2300HT
Ultra Librarian 3D Model Ultra Librarian 2300HT-220-H-RC CAD Model
