Same model may have multiple batches, images only for reference.

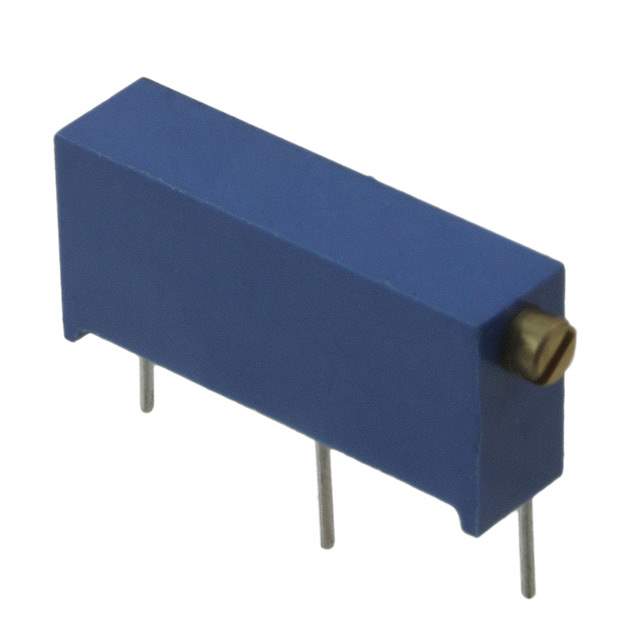

3009Y-1-104LF Real Image
Same model may have multiple batches, images only for reference.

3009Y-1-104LF

Part No 3009Y-1-104LF
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 100K OHM 0.75W PC PIN / 100 kOhms 0.75W, 3/4W PC Pins Through Hole Trimmer Potentiometer Cermet 15.0 Turn Side Adjustment
Datasheet
3009Y-1-104LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3009 - Sealed
Package Tube
Resistance 100 kOhms
Power (Watts) 0.75W, 3/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 15
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm)
Base Product Number 3009Y
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3009Y-1-104LF-ND,3009Y1104LF,3009Y-104LF
Standard Package 100
Win Source Part Number 1037911-3009Y-1-104LF
Ultra Librarian 3D Model Ultra Librarian 3009Y-1-104LF CAD Model

Description

The Bourns Trimpot 3009 - Sealed series is a great choice for your potentiometer needs.

  • Resistance: 100 kOhms
  • Tolerance: ±10%
  • Shape: Rectangular
  • Mounting: Through-hole
  • Resistive Material: Cermet
  • Adjustment: Side adjustment
  • Power Rating: 0.75W
  • Alternative Parts: 3006P-1-104LF, 3006W-1-104LF, 3006Y-1-104LF, T18104KT10, T63YB104KT20, and T63XB104KT203009Y1-104LF
