3223W-1-502E Bourns Inc.

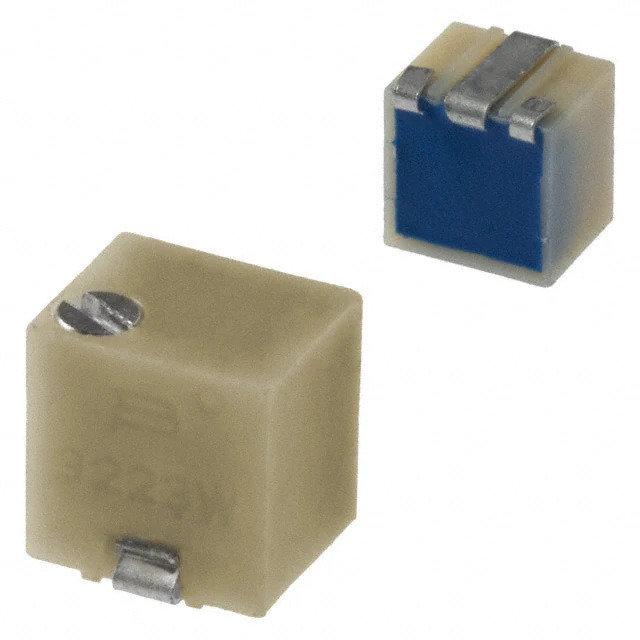

Same model may have multiple batches, images only for reference.

3223W-1-502E

Part No 3223W-1-502E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.125W J LEAD TOP
Datasheet
3223W-1-502E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3223 - Sealed
Package Tape & Reel
Product Status Active
Resistance 5 kOhms
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm)
Base Product Number 3223W
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375006-3223W-1-502E
Ultra Librarian 3D Model Ultra Librarian 3223W-1-502E CAD Model

Description

The 3223W-1-502E is a trimmer potentiometer from Bourns Inc.

  • Series: Trimpot® 3223 - Sealed
  • Mounting Type: Surface Mount
  • Resistance (Ohms): 5 kOhms
  • Power (Watts): 0.125W (1/8W)
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Size / Dimension: Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm)
  • Adjustment Type: Top Adjustment
  • Termination Style: J Lead
  • Resistive Material: Cermet
  • REACH: Affected
  • ECCN: EAR99
