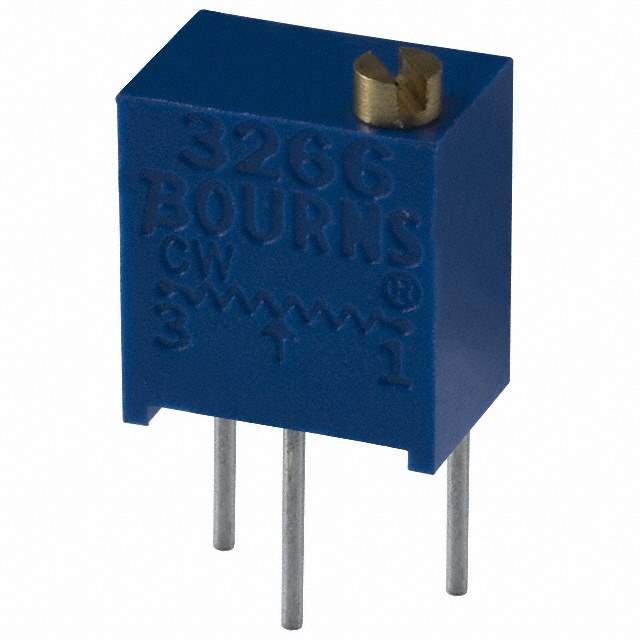

3266W-1-500LF Real Image
Same model may have multiple batches, images only for reference.

3266W-1-500LF

Part No 3266W-1-500LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description 1/4 Square Trimming Potentiometer | TRIMMER 50 OHM 0.25W PC PIN TOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube
Resistance 50 Ohms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Parts Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Family Part Number 3266W
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1128137-3266W-1-500LF
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3266W-1-500LF CAD Model

Description

The 3266W-1-500LF is a variable resistor from Bourns Inc.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Resistance: 50 Ohms
  • Tolerance: ±10%
  • Resistive Material: Cermet
  • Number of Turns: 12
  • Adjustment Type: Top Adjustment
  • Temperature Coefficient: ±100ppm/°C
  • Size / Dimension: 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
  • Product: Potentiometer, Variable Resistor
