Same model may have multiple batches, images only for reference.

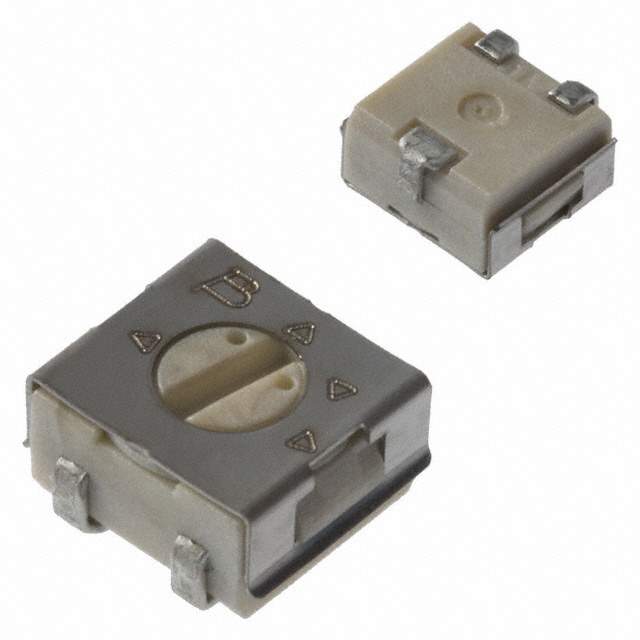

3314J-1-504E Real Image
Same model may have multiple batches, images only for reference.

3314J-1-504E

Part No 3314J-1-504E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.25W SMD
Datasheet
3314J-1-504E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3314 - Sealed
Packaging Reel package
Resistance (Ohms) 500k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 763272-3314J-1-504E
Family Name 3314
Introduction Date December 24, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3314J-1-504E CAD Model

Description

The Bourns Trimpot 3314 - Sealed is a high-quality potentiometer that is designed to meet the needs of a wide range of applications.

  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W
  • Mounting: SMD
  • Termination: J Lead
  • Resistance: 500k Ohms
  • Resistive Material: Cermet
  • Dimension: 0.177" x 0.177" face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
  • Package: Reel
