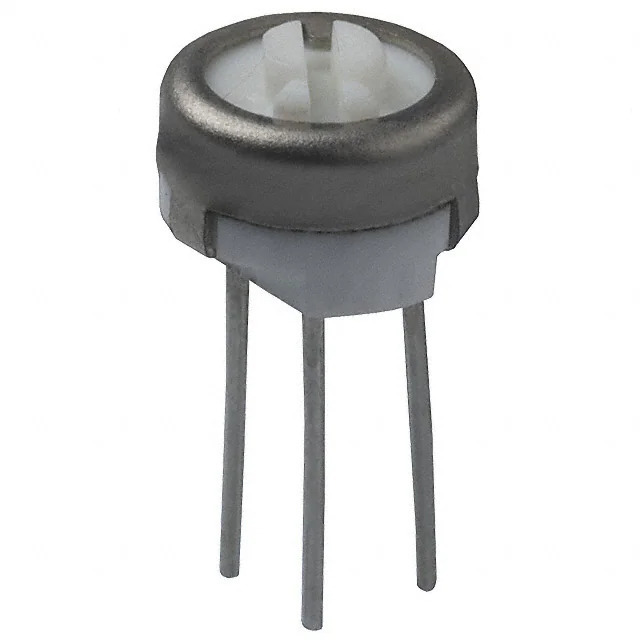

3329H-1-504 Bourns Inc.
Same model may have multiple batches, images only for reference.

3329H-1-504

Part No 3329H-1-504
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.5W PC PIN TOP
Datasheet
3329H-1-504 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3329 - Sealed
Package Tube
Product Status Active
Resistance 500 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Round - 0.250" Dia (6.35mm)
Base Product Number 3329H
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375019-3329H-1-504
Ultra Librarian 3D Model Ultra Librarian 3329H-1-504 CAD Model

Description

The 3329H-1-504 is a trimmer potentiometer manufactured by Bourns Inc.

  • Series: Trimpot® 3329 - Sealed
  • Category: Potentiometers, Variable Resistors - Trimmer Potentiometers
  • Package: Tube
  • Resistance: 500 kOhms
  • Power Rating: 0.5W (1/2W)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
