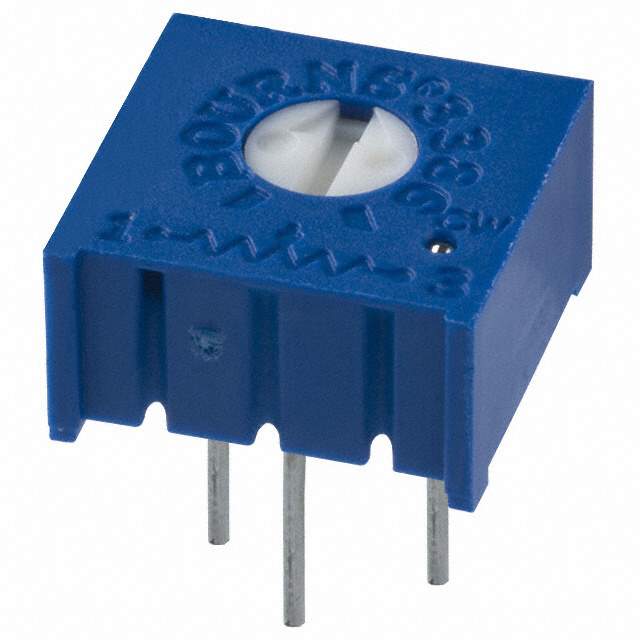

3386P-1-103LF Real Image 3386P-1-103LF real image
Same model may have multiple batches, images only for reference.
3386P-1-103LF Real Image 3386P-1-103LF real image
3386P-1-103LF Real Image 3386P-1-103LF real image
Same model may have multiple batches, images only for reference.

3386P-1-103LF

Part No 3386P-1-103LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Res Cermet Trimmer 10K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turns 3.15mm (9.53 X 9.53 X 4.83mm) Pin Thru-Hole Tube / TRIMMER 10K OHM 0.5W PC PIN
Datasheet
3386P-1-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 10k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face x 0.190" H (9.53mm x 9.53mm x 4.83mm)
Win Source Part Number 092967-3386P-1-103LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Family Name 3386
Introduction Date June 20, 2000
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 3386P-1-103LF CAD Model

Description

Product Overview

The 3386P-1-103LF is a high-precision trimmer potentiometer designed for precise control in electronic circuits. With a 10k ohm resistance, this component offers reliable performance and easy adjustment.

Features and Benefits

  • High Precision: Ensures precise resistance control for your circuit requirements.
  • Compact Design: Space-saving form factor perfect for dense PCB layouts.
  • Durable Construction: Built to withstand harsh conditions, extending the lifespan of your projects.

Applications

  • Audio equipment tuning
  • Operational amplifier offset adjustments
  • Voltage divider applications
  • Sensor calibration projects

Additional Details

This model is RoHS compliant, ensuring safety and environmental standards are met. The 3386P series is known for robust performance, making it a preferred choice among engineers and technicians.
