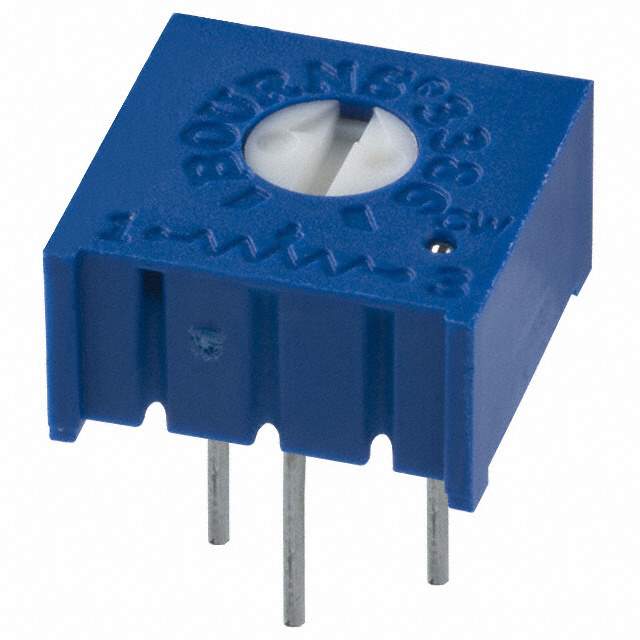

3386P-1-253LF Real Image
Same model may have multiple batches, images only for reference.

3386P-1-253LF

Part No 3386P-1-253LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 25K OHM 0.5W PC PIN
Datasheet
3386P-1-253LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3386 - Sealed
Packaging Tube
Resistance (Ohms) 25k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face x 0.190" H (9.53mm x 9.53mm x 4.83mm)
Win Source Part Number 763316-3386P-1-253LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3386
Introduction Date June 20, 2000
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3386P-1-253LF CAD Model

Description

The Bourns Inc. Trimpot 3386 - Sealed series product has a packaging of tube and termination style of PC Pins.

  • Supply and Demand Status: Limited
  • Termination Style: PC Pins
  • Mounting Style: Through Hole
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power (Watts): 0.5W, 1/2W
  • Resistance (Ohms): 25k
  • Number of Turns: 1
  • Adjustment Type: Top Adjustment
  • Resistive Material: Cermet
  • Family Name: 3386
  • Category: Potentiometers, Variable Resistors
  • Dimension: Square - 0.375" x 0.375" face x 0.190" H (9.53mm x 9.53mm x 4.83mm)
  • Alternative Parts: 500-0081, PV34F253A01B00, PV34F253C01B00
  • Introduction Date: June 20, 2000
  • ECCN: EAR99
  • Country of Origin: Costa Rica
  • Estimated EOL Date: 2027
