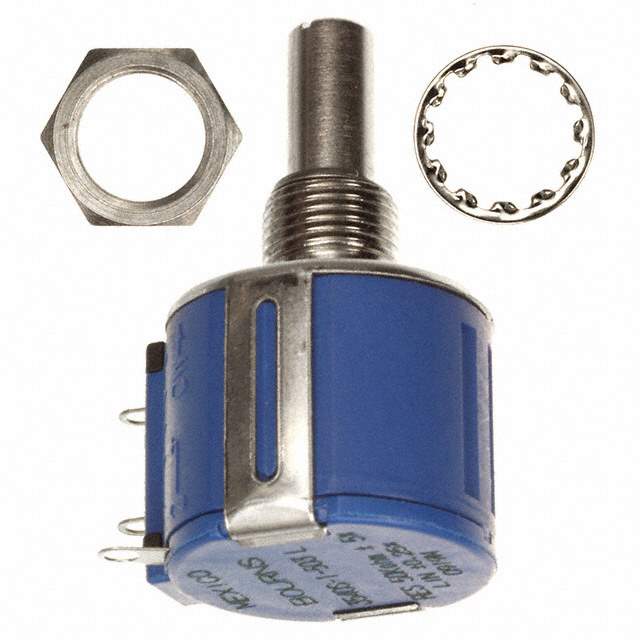

3540S-1-501L Real Image
Same model may have multiple batches, images only for reference.

3540S-1-501L

Part No 3540S-1-501L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description Precision Potentiometer | POT 500 OHM 2W WIREWOUND LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tray
Resistance (Ohms) 500
Tolerance ±5%
Power (W) 2W
Built in Switch None
Number of Turns 10
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±50ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Style Panel Mount
Size - Body Round - 0.875" Dia x 0.750" H (22.23mm x 19.05mm)
Family Part Number 3540S
Manufacturer Pack Quantity 5
MSL Level 1 (Unlimited)
Win Source Part Number 1128277-3540S-1-501L
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3540S-1-501L CAD Model

Description

The Bourns Inc. 3540S-1-501L is a potentiometer or variable resistor component.

  • Manufacturer: Bourns Inc.
  • Resistance: 500 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Taper: Linear
  • Gang: Single
  • Rotation: 3600°
  • Actuator Type: Slotted
  • Actuator Length: 0.812" (20.63mm)
  • Actuator Diameter: 0.2497" (6.34mm)
  • Mounting: Panel
  • Termination Style: Solder Lug
  • Applications: Industrial, consumer electronics, portable devices, and power management.
