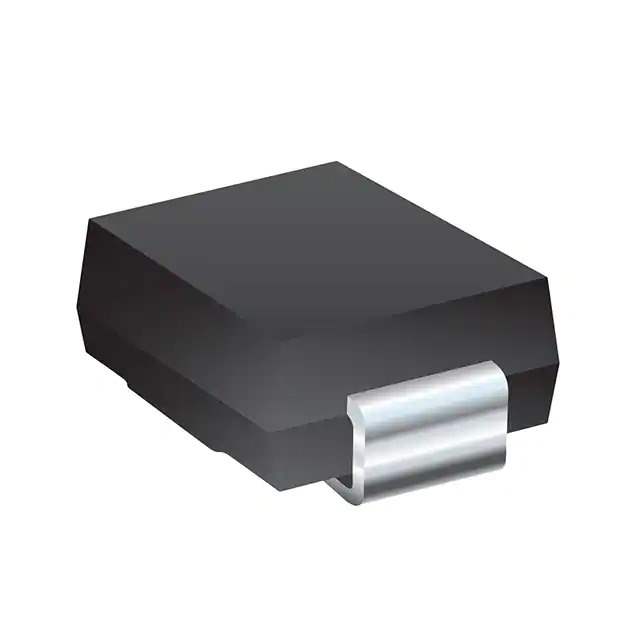

5.0SMDJ75CA Real Image
Same model may have multiple batches, images only for reference.

5.0SMDJ75CA

Part No 5.0SMDJ75CA
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 75VWM 121VC DO214AB
Datasheet
5.0SMDJ75CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Bourns Inc.
Series 5.0SMDJ
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 75V
Voltage - Breakdown (Min) 83.3V
Voltage - Clamping (Max) @ Ipp 121V
Current - Peak Pulse (10/1000µs) 41.4A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications Telecom
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Base Product Number 5.0SMDJ
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 856234-5.0SMDJ75CA
Ultra Librarian 3D Model Ultra Librarian 5.0SMDJ75CA CAD Model

Description

The 5.0SMDJ series is a transient voltage suppressor (TVS) diode designed for telecom applications by Bourns Inc.

  • Package: Tape and reel
  • Standard Package: 3,000 pieces
  • Channel: 1 bidirectional
  • Reverse Standoff Voltage: 75V
  • Breakdown Voltage: 83.3V
  • Clamping Voltage @ Peak Pulse Current: 121V
  • Peak Pulse Power Rating: 5000W (5kW)
  • Capacitance @ Frequency: Not specified
  • Peak Pulse Current: 41.4A for a 10/1000µs waveform
  • Mounting Type: Surface mountable
  • Package/Case: DO-214AB (SMC)
  • REACH: Affected
  • HTSUS Code: 8541.10.0080
  • Base Product Number: 5.0SMDJ
  • Status: Active
