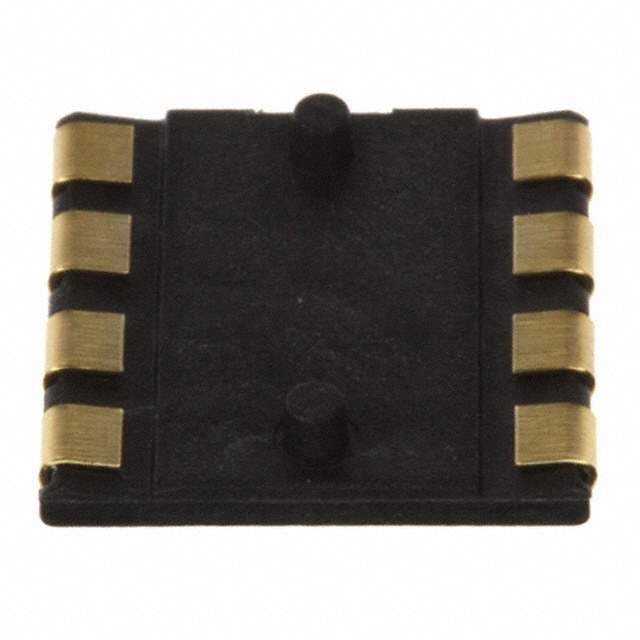

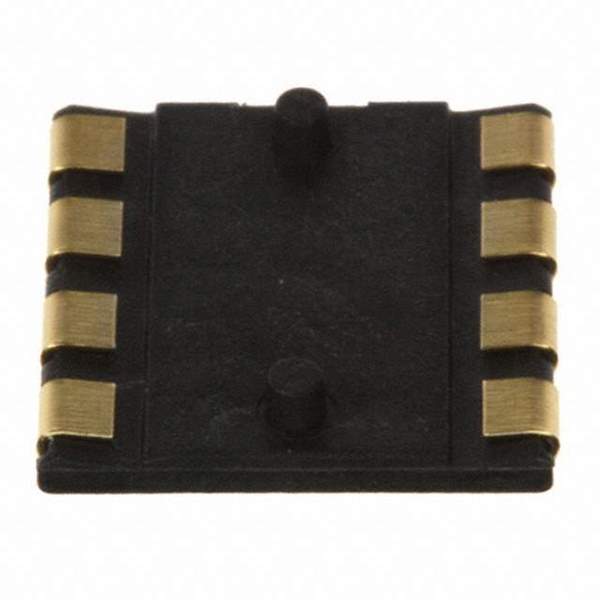

Same model may have multiple batches, images only for reference.

70AAJ-4-F1G

Name: 70AAJ-4-F1G
Brand: Bourns Inc.
SKU: 1161862
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	70AAJ-4-F1G
Manufacturer	Bourns Inc.
Catalog	Rectangular Connectors
Description	CONN SPRING MOD FEMALE 4POS SMD / 4 Position Spring Compression Contact, Female Connector Surface Mount
Datasheet	70AAJ-4-F1G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Spring Loaded
Mfr	Bourns Inc.
Series	70AA
Package	Tape & Reel
Connector Type	Compression Contact, Female
Number of Contacts	4
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting	SMD (SMT)
Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Base Product Number	70AAJ
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	70AAJ-4-F1GCT,70AAJ-4-F1GDKR,70AAJ-4-F1GTR,70AAJ-4-F1G-ND,70AAJ4F1G,Q2197337A
Standard Package	750
Win Source Part Number	1161862-70AAJ-4-F1G
Ultra Librarian 3D Model	Ultra Librarian 70AAJ-4-F1G CAD Model

Alternative Products

Description

The Bourns Inc. 70AAJ-4-F1G is a compression contact, female connector that has four contacts and a pitch of 0.100" (2.54mm).

Row Spacing: -
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Series: 70AA
Package: Tape & Reel
Material: Copper Alloy
ECCN: EAR99
MSL Level: 1 (Unlimited)
Alternative Part: 70AAJ4F1G
