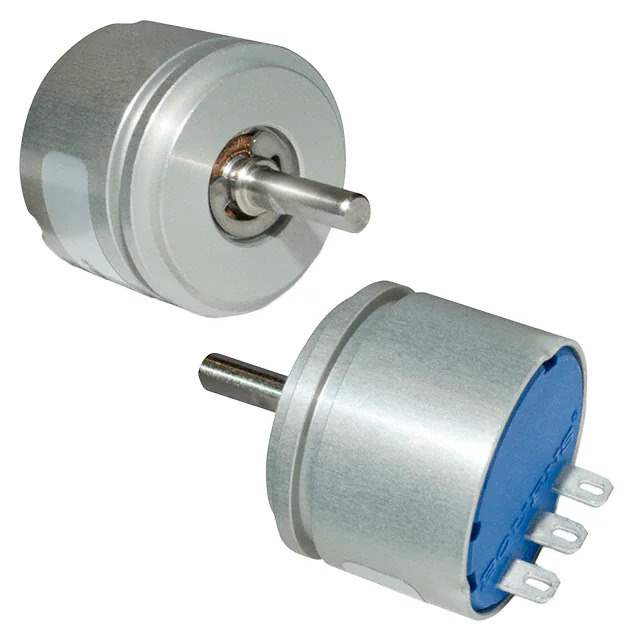

AMS22S5A1BHAFL334 Real Image
Same model may have multiple batches, images only for reference.

AMS22S5A1BHAFL334

Part No AMS22S5A1BHAFL334
Manufacturer Bourns Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ROTARY 340DEG SOLDER LUG / Hall Effect Sensor Rotary Position Flatted Shaft Solder Lug
Datasheet
AMS22S5A1BHAFL334 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr Bourns Inc.
Series AMS22S
Package Bulk
Product Status Active
For Measuring Rotary Position
Technology Hall Effect
Rotation Angle - Electrical, Mechanical 10° ~ 340°, Continuous
Output Analog Voltage
Output Signal Clockwise Increase
Actuator Type Flatted Shaft
Linearity ±0.5%
Voltage - Supply 5V
Mounting Type Panel Mount
Termination Style Solder Lug
Temperature Range - Operating -40°C ~ 125°C
Package / Case Module, Flatted Shaft
Base Product Number AMS22S
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 911408-AMS22S5A1BHAFL334
Ultra Librarian 3D Model Ultra Librarian AMS22S5A1BHAFL334 CAD Model

Description

The AMS22S is a position sensor used for measuring rotary position from Bourns Inc..

  • Technology: Hall Effect
  • Output: Analog Voltage
  • Rotation Angle Range: 10° to 340°
  • Rotation: Continuous
  • Actuator Type: Flatted Shaft
  • Termination Style: Solder Lug
  • Linearity: ±0.5%
  • Mounting: Panel Mountable
  • Voltage Supply: 5V
  • Series: AMS22S
  • Packaging: Bulk
  • Package Quantity: 1 piece
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • Compliance: California Prop 65
