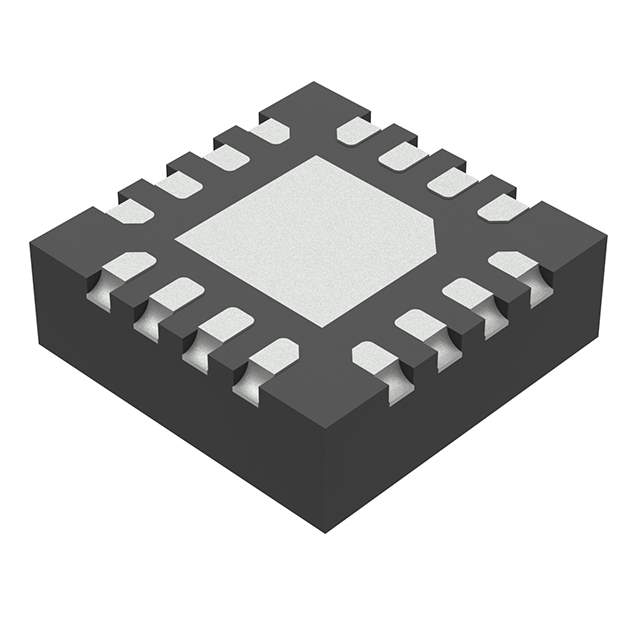

MAQ470GQE-AEC1-Z Real Image
Same model may have multiple batches, images only for reference.

MAQ470GQE-AEC1-Z

Part No MAQ470GQE-AEC1-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description 12-BIT, AUTOMOTIVE ANGLE SENSORW / Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Monolithic Power Systems Inc.
Package Tape & Reel
For Measuring Angle
Technology Hall Effect
Output PWM, SPI
Output Signal Programmable
Actuator Type External Magnet, Not Included
Voltage - Supply 3V ~ 3.6V
Mounting Type Surface Mount, Wettable Flank
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 125°C
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number MAQ470
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1589-MAQ470GQE-AEC1-ZCT,1589-MAQ470GQE-AEC1-ZDKR,1589-MAQ470GQE-AEC1-ZTR
Standard Package 5,000
Win Source Part Number 1130072-MAQ470GQE-AEC1-Z
Ultra Librarian 3D Model Ultra Librarian MAQ470GQE-AEC1-Z CAD Model

Description

The MAQ470 is a Hall Effect sensor that operates on a voltage supply between 3V and 3.6V.

  • Voltage Supply: 3V to 3.6V
  • Measuring: Angles
  • Output Signal: PWM or SPI
  • Actuator Type: External magnet (not included)
  • Resistance Tolerance: -
  • Linear Range: -
  • Technology: Hall Effect
  • Termination Style: SMD (SMT) Tab
  • Package: Tape & Reel
  • Mounting Type: Surface Mount, wettable flank
  • Package/Case: 16-VFQFN Exposed Pad
  • Supplier Device Package: 16-QFN (3x3)
  • Temperature Range: -40°C to 125°C
  • ECCN: Compliant
  • REACH Status: No REACH
  • Manufacturer: Monolithic Power Systems Inc.
