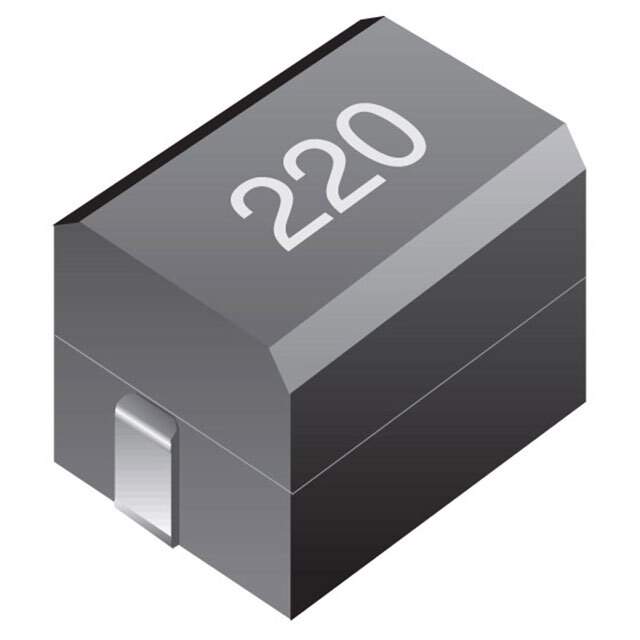

CC453232A-102KL Real Image
Same model may have multiple batches, images only for reference.

CC453232A-102KL

Part No CC453232A-102KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1MH 90MA 40 OHM SMD / 1 mH Unshielded Inductor 90 mA 40Ohm Max 1812 (4532 Metric)
Datasheet
CC453232A-102KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series CC453232A
Package Tape & Reel
Material - Core Ferrite
Inductance 1 mH
Tolerance ±10%
Current Rating (Amps) 90 mA
Current - Saturation (Isat) 80mA
Shielding Unshielded
DC Resistance (DCR) 40Ohm Max
Q @ Freq 20 @ 252kHz
Frequency - Self Resonant 2MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 252 kHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.134" (3.40mm)
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1350199-CC453232A-102KL
Ultra Librarian 3D Model Ultra Librarian CC453232A-102KL CAD Model

Description

The Bourns CC453232A is a fixed inductor with an unshielded shielding.

  • Shielding: Unshielded
  • Package Size: 1812 (4532 Metric)
  • Dimensions: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height: 0.134" (3.40mm)
  • Inductance: 1 mH
  • Tolerance: ±10%
  • Q @ Freq: 20 @ 252kHz
  • Core Material: Ferrite
  • DC Resistance (DCR): 40Ohm Max
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Temperature Range: -40°C ~ 150°C
