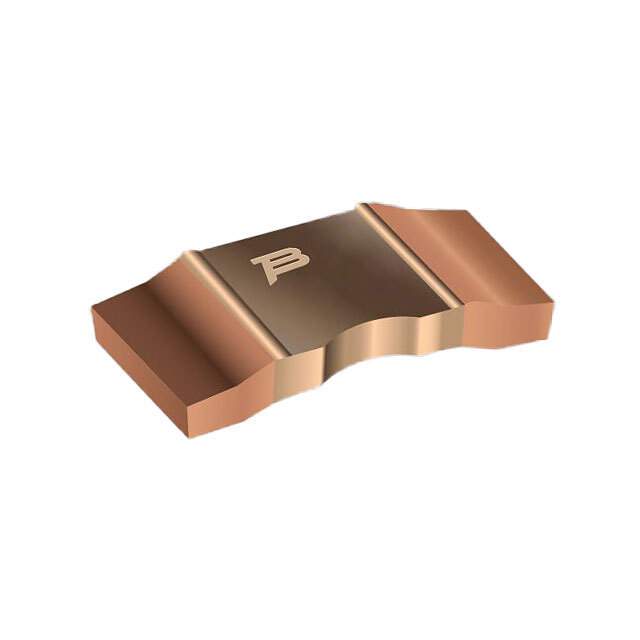

CSS2H-2512R-1L00F Real Image
Same model may have multiple batches, images only for reference.

CSS2H-2512R-1L00F

Part No CSS2H-2512R-1L00F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 1% 5W 2512 / 1 mOhms ±1% 5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
Datasheet
CSS2H-2512R-1L00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.120" W (6.35mm x 3.05mm)
Height - Seated (Max) 0.020" (0.51mm)
Number of Terminations 2
Base Product Number CSS2H
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CSS2H-2512R-1L00FDKR,CSS2H-2512R-1L00FTR,CSS2H-2512R-1L00FCT
Standard Package 3,000
Win Source Part Number 1326346-CSS2H-2512R-1L00F
Ultra Librarian 3D Model Ultra Librarian CSS2H-2512R-1L00F CAD Model

Description

The Bourns CSS2H-2512R-1L00F is a 1mOhms chip resistor that is surface-mounted and is available in a 2512 package size.

  • Manufacturer: Bourns
  • Resistance: 1mOhms
  • Mounting Type: Surface-Mounted
  • Package Size: 2512
  • Element: Metal Element
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 5W
  • AEC-Q200: Rated
  • Application: Automotive
  • Feature: Current Sensing
  • Terminations: 2
  • Packaging: Reel
  • Units per Reel: 3000
  • Operating Temperature: -55°C to 170°C
