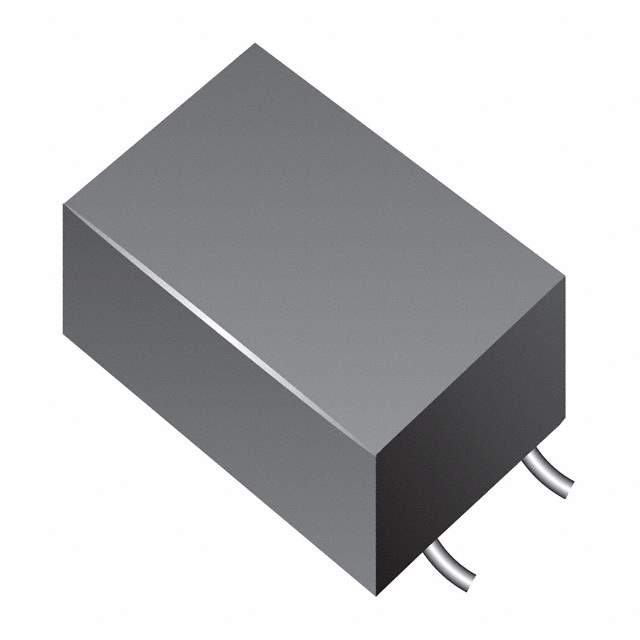

DR221-513AE Real Image
Same model may have multiple batches, images only for reference.

DR221-513AE

Part No DR221-513AE
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 50UH 200MA 2LN SMD / 50 µH @ 10 kHz 2 Line Common Mode Choke Surface Mount 200mA DCR 320mOhm
Datasheet
DR221-513AE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 50 µH @ 10 kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 320mOhm
Voltage Rating - DC 50V
Voltage Rating - AC 100V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Size / Dimension 0.197" L x 0.130" W (5.00mm x 3.30mm)
Height (Max) 0.130" (3.30mm)
Case / Package Horizontal, 4 Flat Lead
Base Product Number DR221
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number DR221-513AETR,DR221513AE,DR221-513AECT,DR221-513AEDKR,DR221-513AE-ND
Standard Package 500
Win Source Part Number 1327737-DR221-513AE
Ultra Librarian 3D Model Ultra Librarian DR221-513AE CAD Model

Description

The DR221-513AE is a common mode choke filter from Bourns Inc.

  • Voltage Rating: 100V AC and 50V DC
  • Current Rating: 200mA
  • Packaging: reel - TR
  • Standard Package: 500
  • Size/Dimension: 0.197" L x 0.130" W (5.00mm x 3.30mm)
  • Height: 0.130" (3.30mm)
  • Mounting: surface mount
  • Filter Type: signal line
  • Number of Lines: Two lines
  • Inductance: 50 µH @ 10 kHz
  • DC Resistance: 320mOhm
  • Temperature Range: -40°C ~ 125°C
  • AEC-Q200 Rated: Yes
