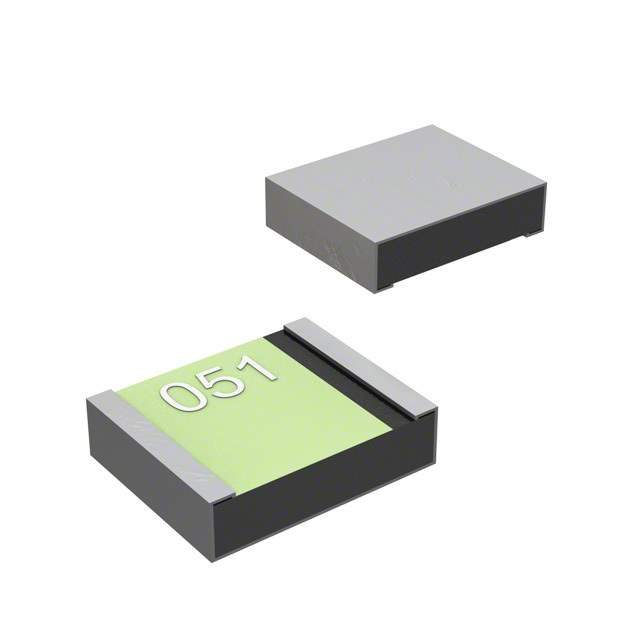

Same model may have multiple batches, images only for reference.

MF-USMD010-2

Name: MF-USMD010-2
Brand: Bourns Inc.
SKU: 1334902
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MF-USMD010-2
Manufacturer	Bourns Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 100MA 1210 / Polymeric PTC Resettable Fuse 30V 100 mA Ih Surface Mount 1210 (3225 Metric)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Manufacturer	Bourns Inc.
Packaging	Reel - TR
Product Status	Obsolete
Type	Polymeric
Voltage - Max	30V
Current - Max	10 A
Current - Hold (Ih) (Max)	100 mA
Current - Trip (It)	300 mA
Time to Trip	600 ms
Resistance - Initial (Ri) (Min)	800 mOhms
Resistance - Post Trip (R1) (Max)	15 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	Surface Mount
Case / Package	1210 (3225 Metric)
Size / Dimension	0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max)	0.033" (0.85mm)
Approval Agency	CSA, TUV, UR
Base Product Number	MF-USMD
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Part Number	MFUSMD0102,MF-USMD010CT,MF-USMD010TR
Standard Package	3,000
Win Source Part Number	1334902-MF-USMD010-2
Ultra Librarian 3D Model	Ultra Librarian MF-USMD010-2 CAD Model

Alternative Products

Description

The Bourns Inc. 1334902-MF-USMD010-2 is a surface mount PTC resettable fuse that comes with a polymeric type.

Voltage - Max: 30V
Current - Max: 10A
Current - Hold (Ih) (Max): 100mA
Current - Trip (It): 300mA
Time to Trip: 600ms
Operating Temperature: -40°C ~ 85°C
Packaging: Reel
Units per Reel: 3000
Thickness (Max): 0.033" (0.85mm)
REACH: Unaffected
ECCN: EAR99
Approval Agencies: CSA, TUV, UR
RoHS Compliant: No
