Same model may have multiple batches, images only for reference.

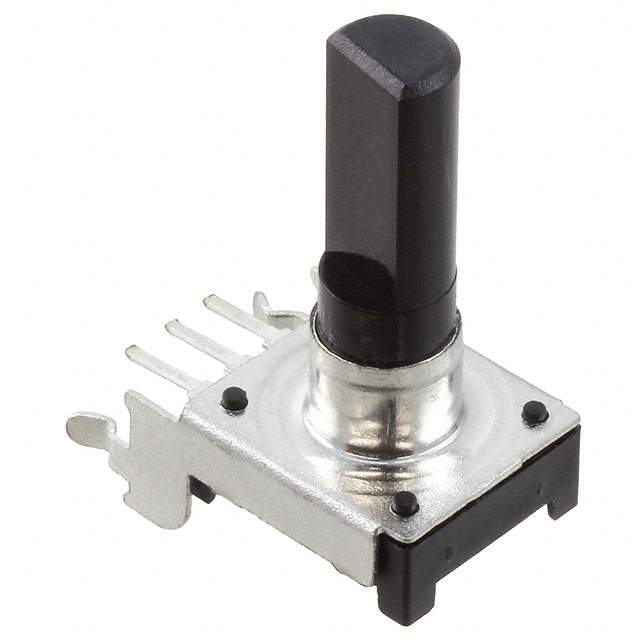

PEC12R-2125F-N0012 Real Image
Same model may have multiple batches, images only for reference.

PEC12R-2125F-N0012

Part No PEC12R-2125F-N0012
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 12PPR / Rotary Encoder Mechanical 12 Quadrature (Incremental) Right Angle
Datasheet
PEC12R-2125F-N0012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series PEC12R
Package Tray
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 12
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch No
Mounting Type PCB, Through Hole
Orientation Right Angle
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Base Product Number PEC12R
Standard Package 75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
California Prop 65 Warning Information
Win Source Part Number 1351723-PEC12R-2125F-N0012
Ultra Librarian 3D Model Ultra Librarian PEC12R-2125F-N0012 CAD Model

Description

The PEC12R-2125F-N0012 from Bourns Inc. is a high-quality mechanical encoder with a quadrature (incremental) output type and a 6mm dia flatted end actuator type.

  • Output Type: Quadrature (Incremental)
  • Actuator Type: 6mm Dia Flatted End
  • Detent: Yes
  • Rotational Life: 30K Cycles Min
  • Pulses per Revolution: 12
  • Units per Tray: 75
  • Termination Style: PC Pin
  • Orientation: Right Angle
  • Series: PEC12R
  • Applications: Sensors and Transducers
