PT75161EL Bourns Inc.

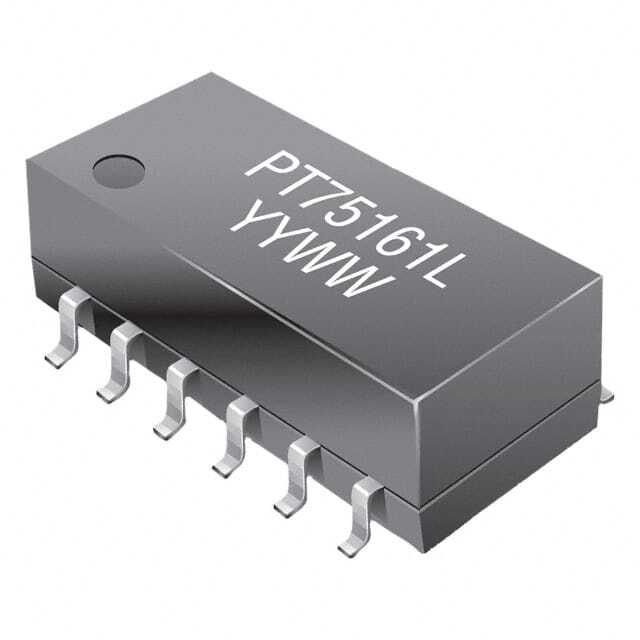

Same model may have multiple batches, images only for reference.

PT75161EL

Part No PT75161EL
Manufacturer Bourns Inc.
Catalog Specialty Transformers
Description E4/STM-1 TRANSFORMER
Datasheet
PT75161EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Specialty Transformers
Mfr Bourns Inc.
Package Bulk
Product Status Obsolete
Inductance 10 mH
Mounting SMD (SMT)
Dimension 0.675" L x 0.400" W (17.14mm x 10.16mm)
Height - Seated (Max) 0.340" (8.63mm)
Base Product Number PT7516
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1314878-PT75161EL
Ultra Librarian 3D Model Ultra Librarian PT75161EL CAD Model

Description

The Bourns Inc. PT75161EL transformer is a specialty transformer that is designed to provide 10 mH inductance.

  • Inductance: 10 mH
  • Seated Height: 0.340 inches (8.63mm)
  • Mounting: SMD (SMT)
  • Dimension: 0.675 inches L x 0.400 inches W (17.14mm x 10.16mm)
  • Status: Obsolete
  • Recommendation: Not recommended for new designs
  • ECCN: EAR99
  • HTSUS: 8504.31.2000
