Same model may have multiple batches, images only for reference.

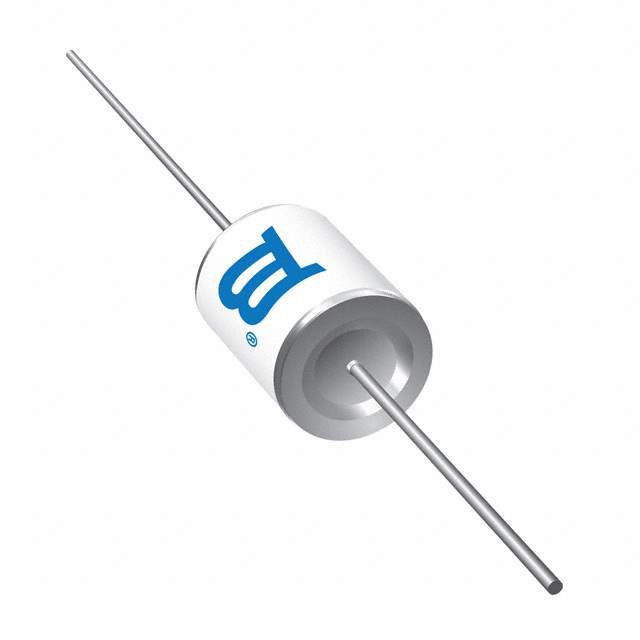

SA2-3600-DLT-STD Real Image
Same model may have multiple batches, images only for reference.

SA2-3600-DLT-STD

Part No SA2-3600-DLT-STD
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Datasheet
SA2-3600-DLT-STD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series SA2
Package Tape & Reel (TR)
Voltage - DC Spark Over (Nom) 3600 V
Impulse Discharge Current (8/20µs) 5000A (5kA)
Tolerance -15%, +20%
Number of Poles 2
Fail Short No
Mounting Type Through Hole
Package / Case Axial Cylinder
Base Product Number SA2-3600
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1301911-SA2-3600-DLT-STD
Ultra Librarian 3D Model Ultra Librarian SA2-3600-DLT-STD CAD Model

Description

The SA2-3600-DLT-STD is a gas discharge tube arrester designed to protect against lightning and other high voltage surges.

  • DC spark over voltage: 3600V
  • Tolerance: -15% to +20%
  • Number of Poles: 2
  • Impulse discharge current: 5000A (5kA)
  • Mounting Type: Through-hole
  • Package: Axial cylinder
  • Standard Package: 1,000
  • REACH: Unaffected
  • Manufacturer: Bourns Inc.
