Same model may have multiple batches, images only for reference.

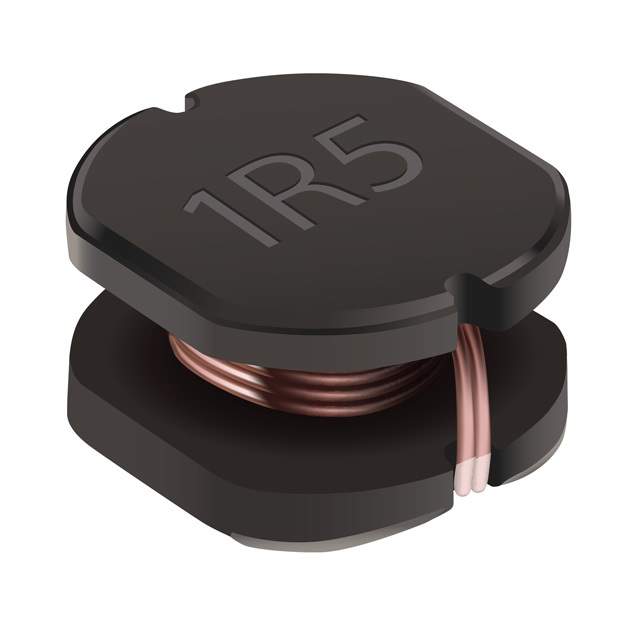

SDE1006A-821K Real Image
Same model may have multiple batches, images only for reference.

SDE1006A-821K

Part No SDE1006A-821K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE1006A-821K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE1006A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 820 µH
Tolerance ±10%
Current Rating (Amps) 450 mA
Current - Saturation (Isat) 500mA
Shielding Unshielded
DC Resistance (DCR) 2.55Ohm Max
Frequency - Self Resonant 2.2MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) 0.228" (5.80mm)
Base Product Number SDE1006A
Other Names SDE1006A-821KDKR,SDE1006A-821KTR,SDE1006A-821KCT,SDE1006A-821K
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274869-SDE1006A-821K
Ultra Librarian 3D Model Ultra Librarian SDE1006A-821K CAD Model

Description

The Bourns SDE1006A series is a range of drum core wirewound inductors that are ideal for use in a variety of applications.

  • Shielding: Unshielded
  • Package/Case: Nonstandard
  • Inductance: 820 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • AEC-Q200 Ratings: Yes
  • Frequency Self-Resonant: 2.2MHz
  • DC Resistance (DCR): 2.55Ohm Max
  • Current Rating (Amps): 450 mA
  • Height Seated: 0.228" (5.80mm)
  • Mounting: SMD (SMT)
  • Temperature: -40°C to 125°C
