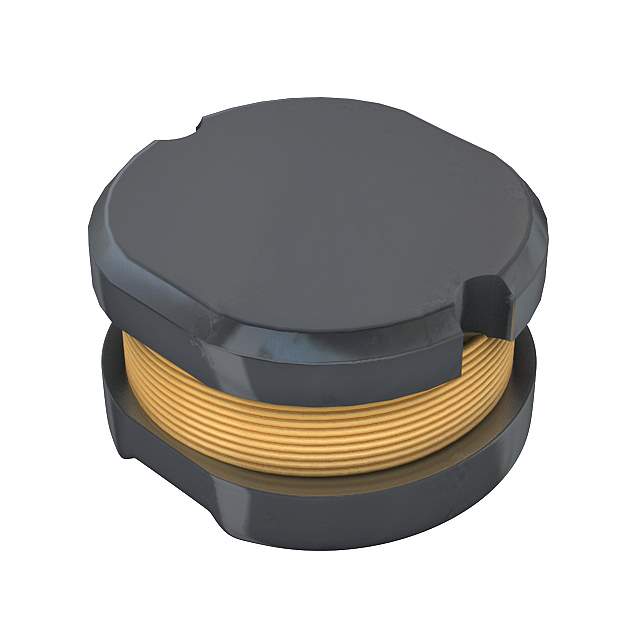

SDR0302-560KL Real Image
Same model may have multiple batches, images only for reference.

SDR0302-560KL

Part No SDR0302-560KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0302-560KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0302
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±10%
Current Rating (Amps) 340 mA
Current - Saturation (Isat) 350mA
Shielding Unshielded
DC Resistance (DCR) 1.45Ohm Max
Q @ Freq 18 @ 2.52MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max) 0.110" (2.80mm)
Base Product Number SDR0302
Other Names -SDR0302-560KL,SDR0302-560KLTR,SDR0302-560KL,SDR0302-560KLCT,SDR0302560KL,-SDR0302-560KLCT,-SDR0302-560KL,-SDR0302-560KLTR,SDR0302-560KLDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274852-SDR0302-560KL
Ultra Librarian 3D Model Ultra Librarian SDR0302-560KL CAD Model

Description

The Bourns Inc. SDR0302 series is a drum core, wirewound type inductor with a nonstandard package.

  • Shielding: Unshielded
  • Inductance: 56 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 18 @ 2.52MHz
  • Frequency: Self-Resonant of 16MHz
  • DC Resistance (DCR): 1.45Ohm Max
  • Current Rating: 340 mA
