Same model may have multiple batches, images only for reference.

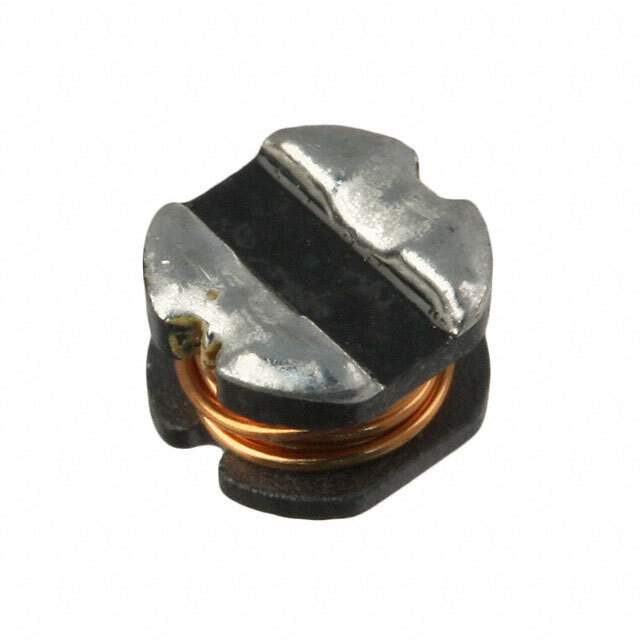

SDR0403-180ML Real Image
Same model may have multiple batches, images only for reference.

SDR0403-180ML

Part No SDR0403-180ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0403-180ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0403
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 18 µH
Tolerance ±20%
Current Rating (Amps) 840 mA
Current - Saturation (Isat) 1.3A
Shielding Unshielded
DC Resistance (DCR) 340mOhm Max
Q @ Freq 25 @ 2.52MHz
Frequency - Self Resonant 23MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SDR0403
Other Names -SDR0403-180MLTR,-SDR0403-180MLCT,SDR0403-180MLDKR,-SDR0403-180ML,-SDR0403-180ML,SDR0403-180MLCT,SDR0403-180MLTR,SDR0403-180ML,SDR0403180ML
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274835-SDR0403-180ML
Ultra Librarian 3D Model Ultra Librarian SDR0403-180ML CAD Model

Description

The Bourns Inc. SDR0403-180ML is a high-quality electronic component that is known for its excellent performance and reliability.

  • Inductance: 18 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 340mOhm Max
  • Supply and Demand Status: Unlimited
