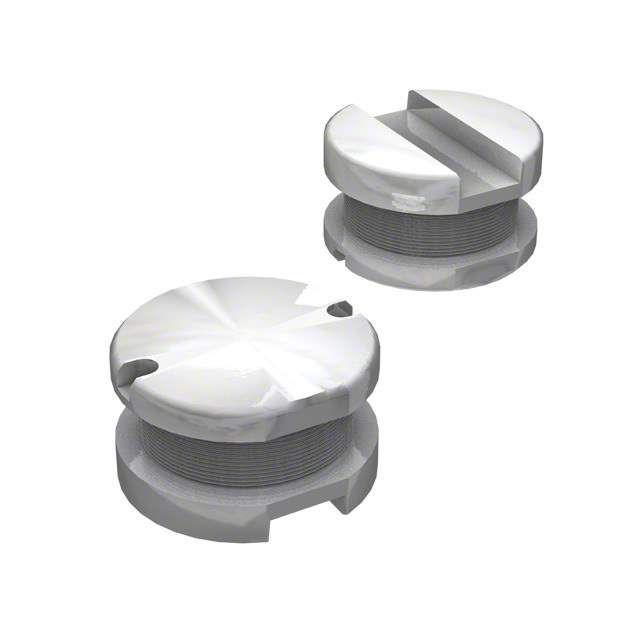

SDR0503-102K

Get a Quote

Part No	SDR0503-102K
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDR0503-102K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR0503
Package	Tape & Reel (TR)
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 mH
Tolerance	±10%
Current Rating (Amps)	110 mA
Current - Saturation (Isat)	135mA
Shielding	Unshielded
DC Resistance (DCR)	11.5Ohm Max
Q @ Freq	40 @ 252kHz
Frequency - Self Resonant	3MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max)	0.130" (3.30mm)
Base Product Number	SDR0503
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274806-SDR0503-102K
Ultra Librarian 3D Model	Ultra Librarian SDR0503-102K CAD Model

Alternative Products

Description

The Bourns SDR0503-102K is a fixed inductor that is surface-mounted and is available in a tape and reel packaging.

Structure: Unshielded drum core wirewound
Inductance: 1mH
Tolerance: ±10%
DC Resistance: 11.5Ohm max
Q @ Freq: 40 @ 252kHz
Frequency of Self-Resonance: 3MHz
Current Rating: 110mA
Package/Case: Non-standard
Operating Temperature: -40°C to 125°C
Mounting: SMD (SMT)
Applications: Automotive and telecom applications
